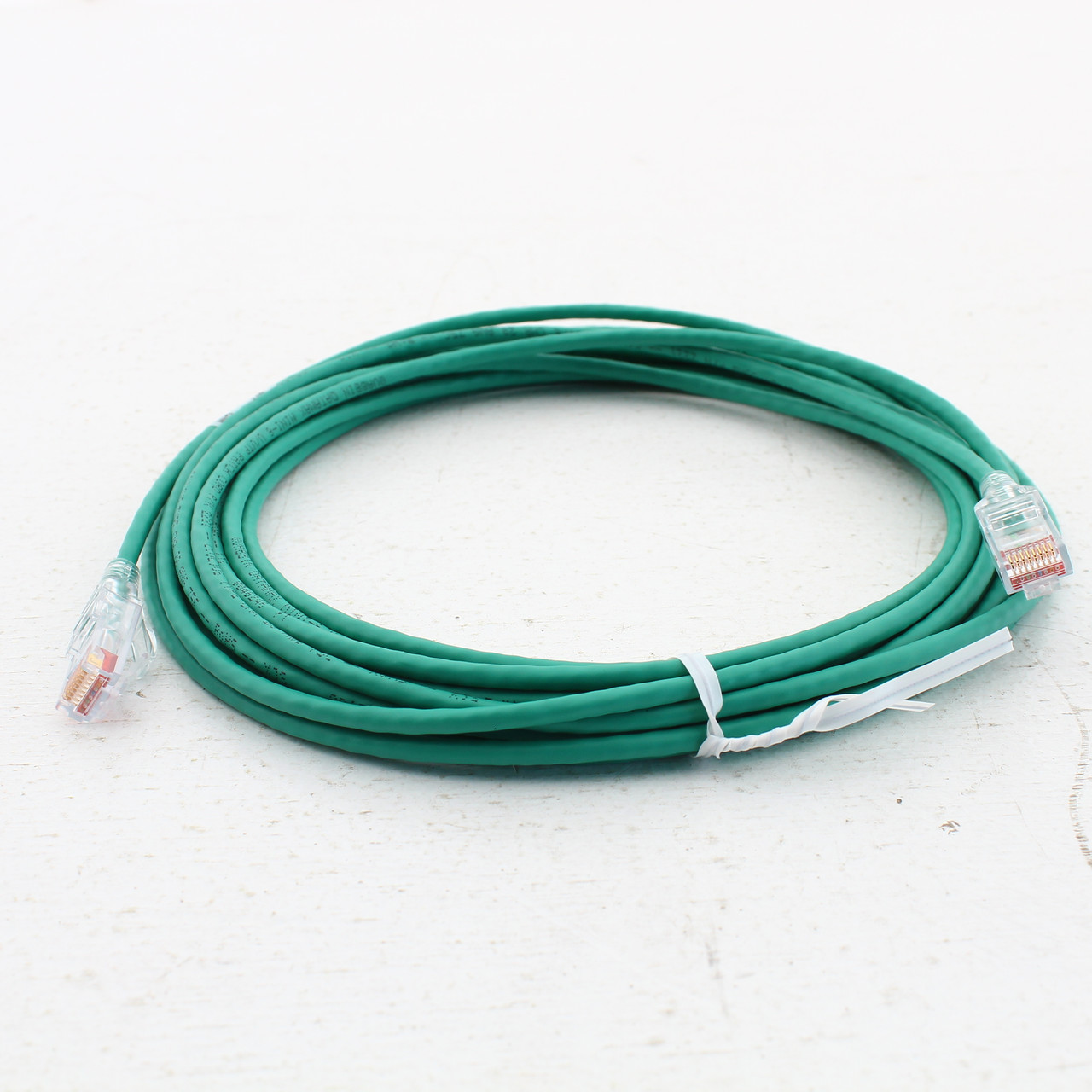

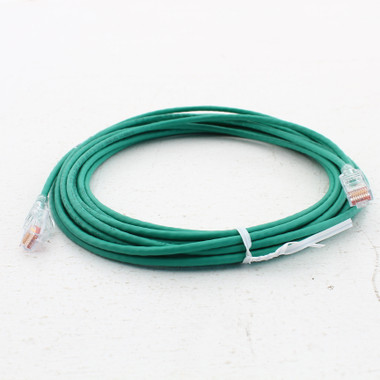

- Hubbell Low Diameter Patch Cord Cat 6 Green 20 Ft Ethernet Network Cord HCL6GN20
QTY Available to Ship:
21
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description
Hubbell HCL6GN20 Category 6 patch cord. Special low diameter design (0.15" O.D.). Low diameter patch cords from Hubbell reduce cable congestion associated with high density installation in data centers, wall mount enclosures and Cat 6 panels. They utilize #28AWG stranded copper conductors that are extremely flexible and easy to manage. This gauge is below current TIA-568 specifications and, as a result, these cords have an increased de-rating factors and limitations on PoE applications. Features include:
- De-rating factor: 1.87
- Maximum channel with PoE: 131ft
- Maximum bundle: 802.3bt=24 cables; 802.3at=48 cables
- Length: 20 ft.
- Color: green
- Category 6
- Nominal O.D.: 0.150"
- 28 AWG stranded copper
- Strain relief boot
- 5-gigabit application assurance
- 50 micro-inch gold contact plating with 100 micro-inch underplating
- High flexibility: stranded copper conductors with soft, flexible cable jacket provide easy cable management
- Plug optimized: allows for easy access to high density switch ports
- 40% improved bend radius
- Third party ETL verified Category 6 component
- ETL Verified for TIA Component NEXT and Return Loss
- Designed to exceed TIA component NEXT and Return Loss values
- Reduced airflow resistance and improved cooling
- Over 30% reduction in weight puts less stress on cable support infrastructure
- Soft flexible cable for easy cable management
- Backwards compatible to lower categories
MPN:
HCL6GN20
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
662620618623
Weight:
0.25 LBS
