Hubbell Low Diameter Patch Cord Cat 6 White 20 Ft Ethernet Network Cable HCL6W20

Your Price: $7.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

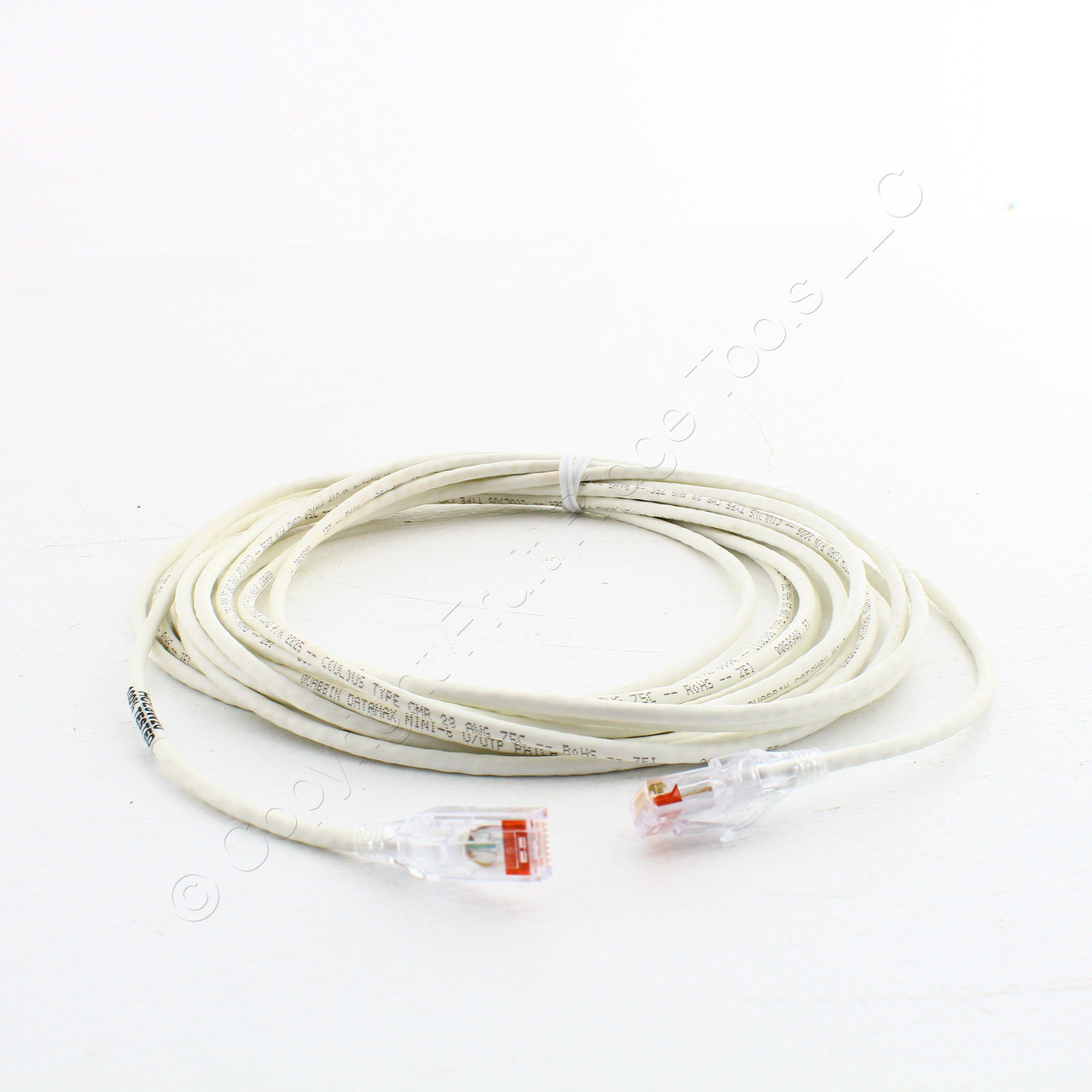

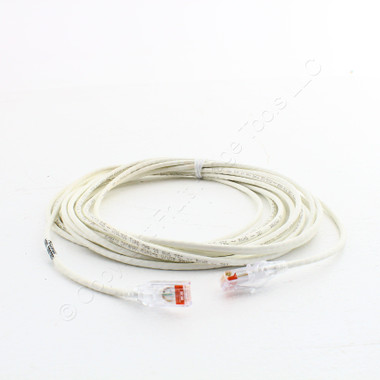

Hubbell HCL6W20 Category 6 patch cord. Special low diameter design (0.15" O.D.). Low diameter patch cords from Hubbell reduce cable congestion associated with high density installation in data centers, wall mount enclosures and Cat 6 panels. They utilize #28AWG stranded copper conductors that are extremely flexible and easy to manage. This gauge is below current TIA-568 specifications and, as a result, these cords have an increased de-rating factors and limitations on PoE applications. Features include:

De-rating factor: 1.87
Maximum channel with PoE: 131ft
Maximum bundle: 802.3bt=24 cables; 802.3at=48 cables
Length: 20 ft.
Color: white
Category 6
Nominal O.D.: 0.150"
28 AWG stranded copper
Strain relief boot
5-gigabit application assurance
50 micro-inch gold contact plating with 100 micro-inch underplating
High flexibility: stranded copper conductors with soft, flexible cable jacket provide easy cable management
Plug optimized: allows for easy access to high density switch ports
40% improved bend radius
Third party ETL verified Category 6 component
ETL Verified for TIA Component NEXT and Return Loss
Designed to exceed TIA component NEXT and Return Loss values
Reduced airflow resistance and improved cooling
Over 30% reduction in weight puts less stress on cable support infrastructure
Soft flexible cable for easy cable management
Backwards compatible to lower categories

MPN:

HCL6W20

Cross Reference:

Not Available

Color:

N/A

Condition:

New

UPC:

662620610429

Weight:

0.25 LBS
