- Hubbell Fiber Optic Patch Cord Plenum OM3 Duplex MM LC-SC 10m DFPCLCSCE10MM
QTY Available to Ship:
10
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description

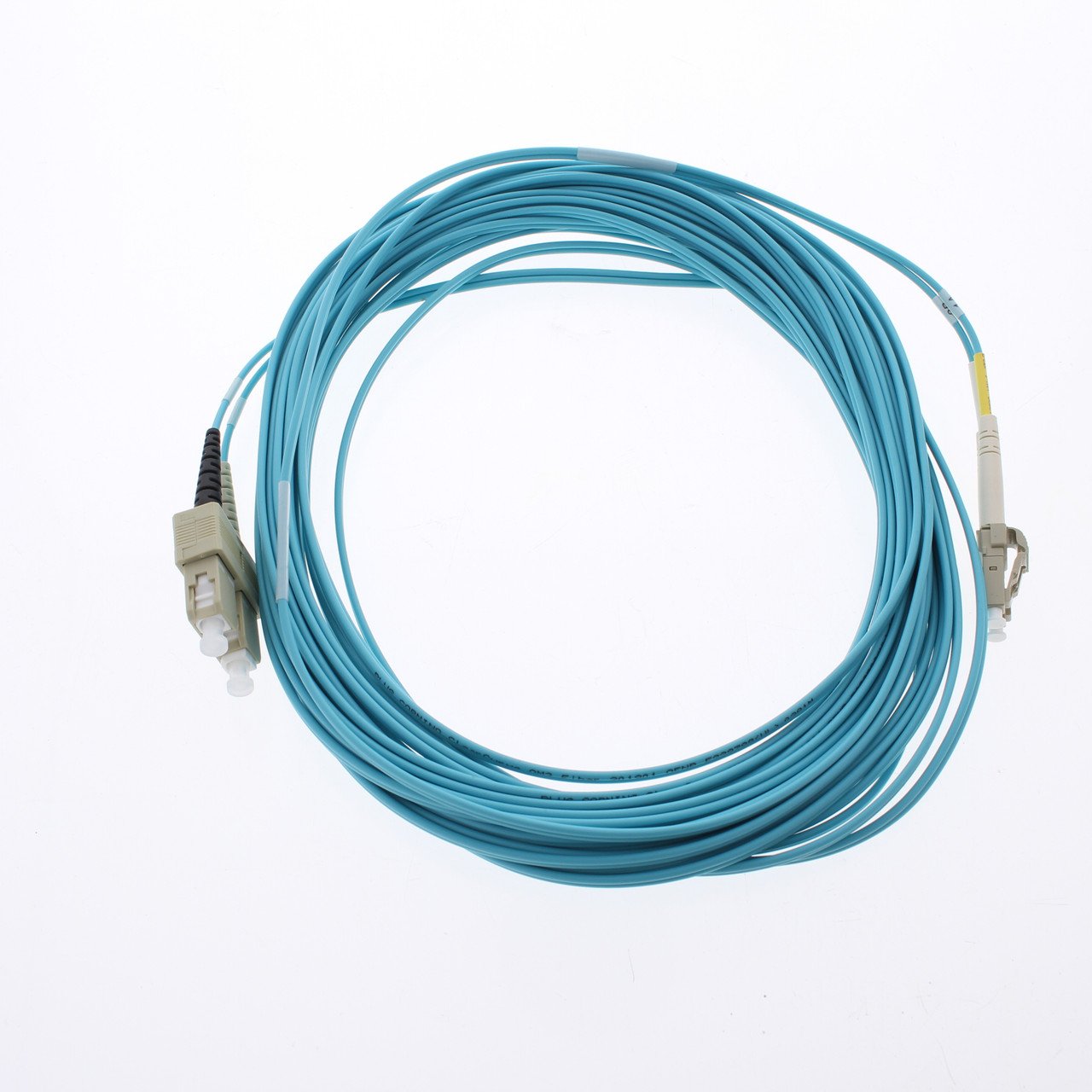

Hubbell DFPCLCSCE10MM OptiChannel fiber optic patch cord. Features include:
- Connectors:LC to SC
- Fiber grade: OM3
- Density: Duplex
- Mode type: Multimode
- Tip polish style: PC (physical contact)
- Core/cladding: 50/125 micron
- Length: 10 meter
- Cable type: Plenum
- Cable diameter: 1.6 mm to 2.0 mm
- OM3 distance limits: 300 meters @ 10G; 100 meters @ 40G/100G
- Mated pair insertion loss: < 0.50 dB (0.35 dB Typical)
- Mated pair return loss: > 26 dB
- Factory polished and 100% tested for superior performance
- 100% tested, heat cured epoxy termination
- Ferrule material: zirconia ceramic
MPN:
DFPCLCSCE10MM
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
662620321295
Weight:
0.20 LBS
