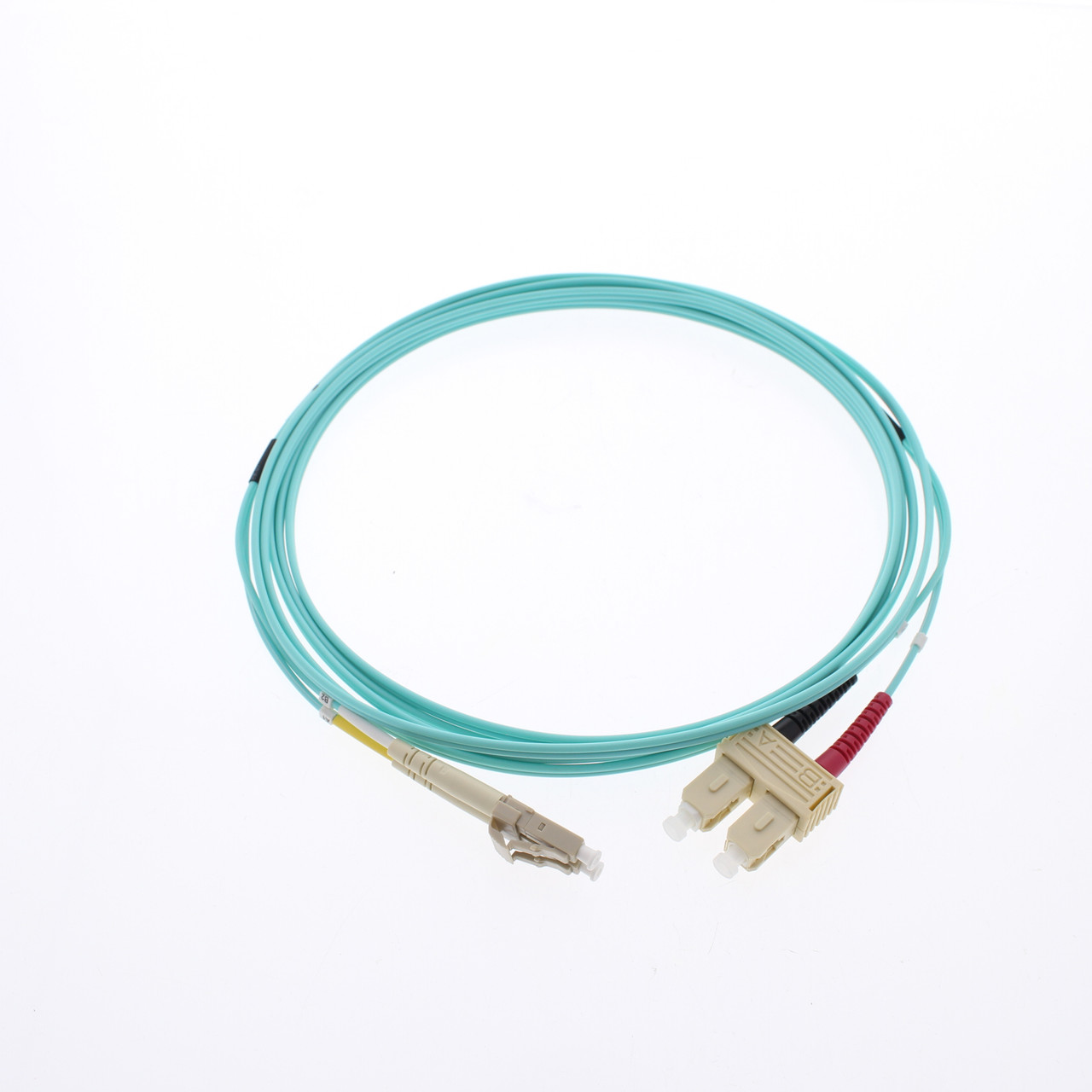

Hubbell Fiber Optic Patch Cord Cable LSZH OM3 Duplex MM LC-SC 3m DFPCLCSCE3MMZ

Your Price: $19.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Hubbell DFPCLCSCE3MMZ OptiChannel fiber optic patch cord. Features include:

Connectors:LC to SC
Fiber grade: OM3
Density: Duplex
Mode type: Multimode
Tip polish style: PC (physical contact)
Core/cladding: 50/125 micron
Length: 3 meter
Cable type: LSZH (low smoke, zero halogen)
Cable diameter: 1.6 mm to 2.0 mm
OM3 distance limits: 300 meters @ 10G; 100 meters @ 40G/100G
Mated pair insertion loss: < 0.50 dB (0.35 dB Typical)
Mated pair return loss: > 26 dB
Factory polished and 100% tested for superior performance
100% tested, heat cured epoxy termination
Ferrule material: zirconia ceramic

MPN:

DFPCLCSCE3MMZ

Cross Reference:

Not Available

Color:

N/A

Condition:

New

UPC:

662620320106

Weight:

0.15 LBS
