- 72-Feet Berk-Tek GIGAlite 72-Fiber Adventum Multi-Mode Plenum Fiber Optic Cable
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

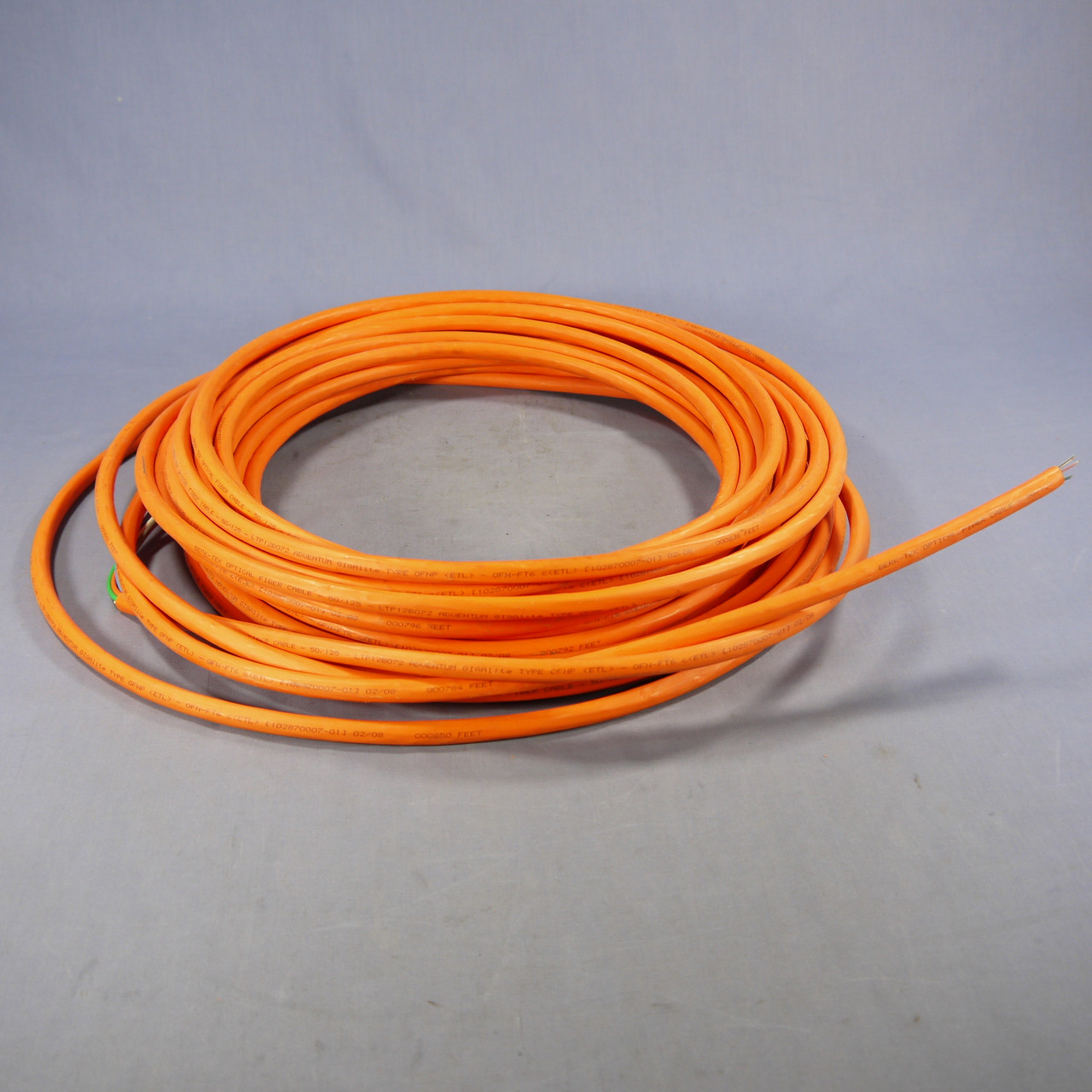

72 feet of Berk-Tek's (Part # LTP12B072LB3010/75) 72 x OM2+ Adventum Plenum multi-mode GIGAlite fiber optic cable. Berk-Tek's revolutionary Outdoor/Indoor Adventum cables are designed to be used in plenum rated environments. Adventum supports the latest Gigabit Communications Protocols, including Gigabit Ethernet and ATM. This cable design utilizes Berk-Tek's unique DryGel water-blocking system. DryGel technology utilizes super absorbent polymers to replace the messy gel filler inside the fiber tubes. It is the only fire-rated cable designed to withstand the rigors of the outside plant environment. Adventum is rated for plenum installations and has no gel filler. Features include:
- Easy one-pull installation into any environment
- Compact outside diameters when compared to plenum inner-duct or conduit
- Eliminates the need for conduit or plenum inner-duct
- Significant cost savings in both materials and labor up to 25%
- Suitable for hazardous environments or difficult installations
- Accommodates last minute relocations or pathway changes
- Provides a higher concentration of cables in an area than conduit
- Can be installed in campus environments due to the durability and indoor/outdoor rating of the cable
- System grounding requirements are eliminated
- Intended for all high speed data applications, including: 10BASE-FL, 100BASE-SX/100BASE-FX, ATM 155/ATM 622, 1000BASE-SX/1000BASE-LX, Fibre Channel 1.062/2.125, 10GBASE-SR/SW, 10GBASE-LX4, and 40/100 GbE
- UV resistant outer jacket protects the cable in outside plant installations
- Fiber optic type: OM2 50/125 Extended Distance
- Type of cable: Loose tube
- Outer sheath: Plenum
- Sheath Color: Orange
- Tube diameter: 3mm
- Number of optical fibres: 72
- Nominal outer diameter: 0.774in
- Optical performance: LB (50/125 GIGAlite, OM2+ Extended Distance)
- Attenuation, max. 850 nm (cabled): 3.0dB/km
- Attenuation, max. 1300 nm (cabled): 1.0dB/km
- Maximum installation tension: 600lb
- Maximum installation tension: 2670N
- Max. Load. Long Term (lbs): 200.0lb
- Max. Load. Long Term: 890.0N
- Cable flexibility per TIA/EIA FOTP-104: 100 cycles
- Minimum Bending Radius - Install: 11.6in
- Minimum Bending Radius - LongTerm: 7.7in
- RoHS conform: Yes
- Field of application: Indoor, Outdoor
MPN:
LTP12B072LB3010/75
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
5.80 LBS
