- 230ft AFL Single-Unit 24-Fiber Plenum MM CPC Circular Premise Fiber Optic Cable
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

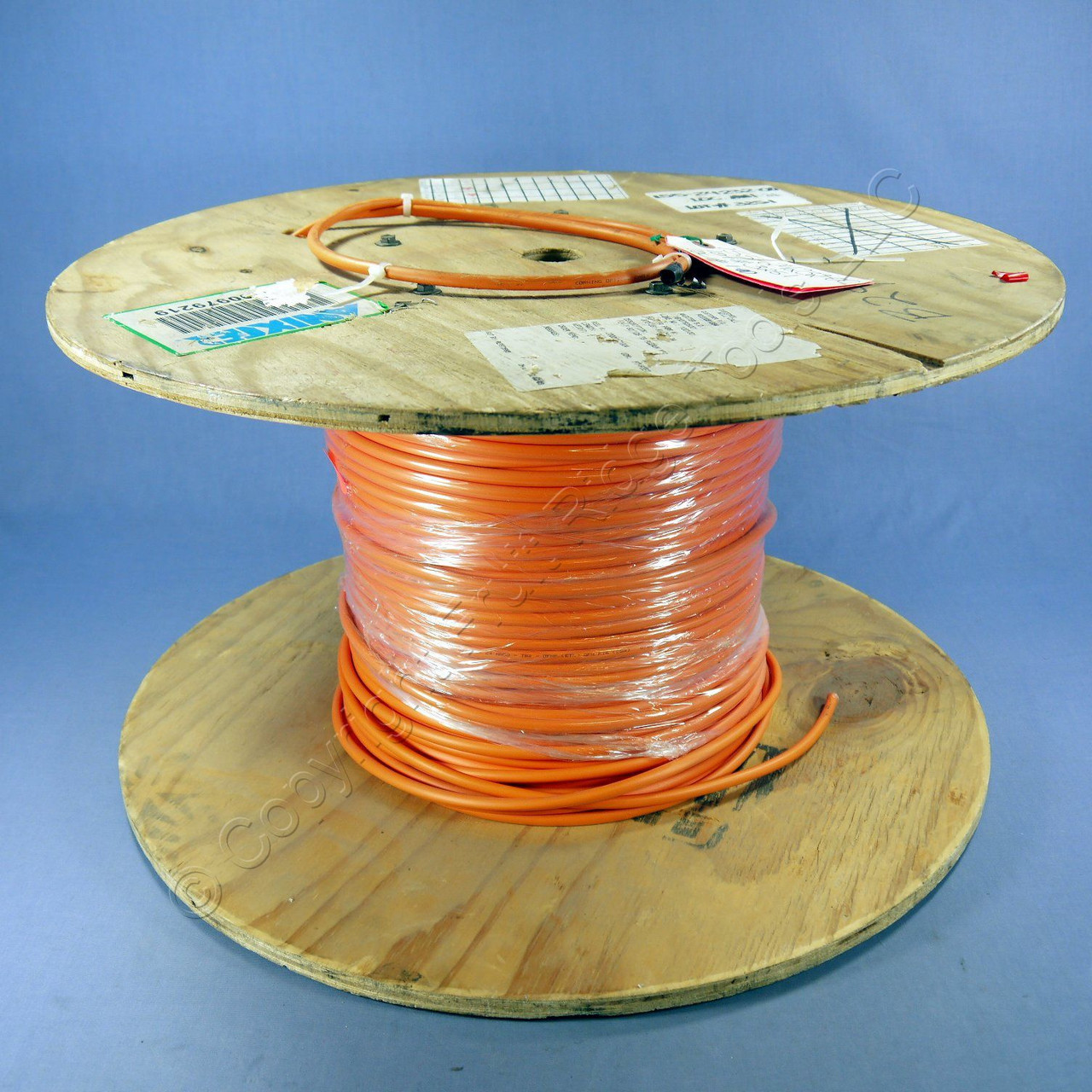

230 feet AFL Telecommunication (Part # CP0245841002) single-unit 24-Fiber plenum 50/125µm multi-mode circular premise fiber optic cable. Features include:
- Head-end termination to a fiber backbone
- Termination of fiber rack systems
- Routing between Telecommunications closets and equipment rooms
- Intrabuilding backbones
- 900µm buffer for secure and reliable connectorization with all types of fiber connectors (125/250/900µm)
- Aramid yarn reinforcement for rugged protection
- Highly flexible for ease of routing
- OFNP-UL 910 plenum-rated, as well as Canadian UL and CSA FT-6 listed
- Tested to meet or exceed EIA/TIA 568-A/ GR-409-CORE
- Ease of stripping for field installable connectors or splicing
- Compliant to Directive 2002/95/EC (RoHS)
- Easily identifiable colored fibers and unitized subgroups
- PVC jacket
- Nominal Diameter: 0.34in
- Tension installation in LBS: 641
- Tension Long Term in LBS: 321
- Bending Radius Installation: 5.5in
- Bending Radius Long Term: 3.5in
- 50/125µm multi-mode
- Circular premise cable (CPC)
MPN:
CP0245841002
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
22.90 LBS
