Eaton Ivory GFCI Self-Test Straight Blade Duplex Receptacle Outlet Commercial Grade NEMA 5-15R 15A 125V SGF15V

Your Price: $14.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

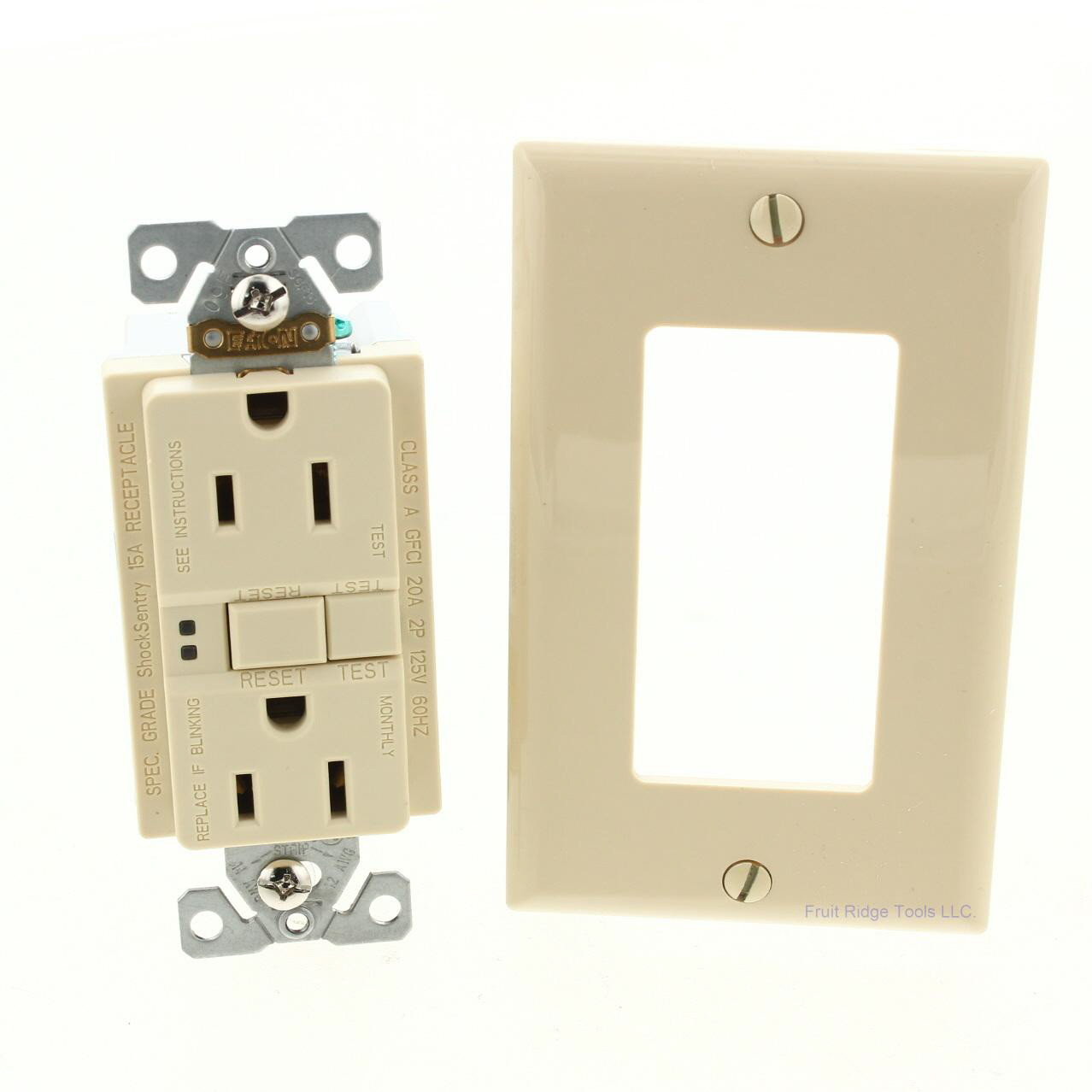

Eaton SGF15V ivory ground fault circuit interrupter (GFCI) receptacle. The receptacle is self-testing and rated NEMA 5-15R, 2-pole, 3-wire, ground fault, rated 15A 125V at receptacle with a 20A feed thru. Features include:

Patented correct wiring/trip indicator light visibly signals proper line-to-load connections - to prevent installation errors
Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
20 amp feed-through allows full protection of downstream receptacles when wired from load side
8 separate backwiring holes accept up to #10AWG stranded wire, for maximum flexibility
Durable, impact-resistant thermoplastic construction
Line terminal screws are backed out, staked, and ready to wire; load side terminals are torqued down for increased prevention of miswiring
Device and wallplate mounting screws are captive, speeding installation time
Low overall dimensions makes for more room to wire in "crowded box" situations
Color-matched and recessed Test & Reset buttons provide uniform appearance
Exclusive built-in wire stripper, provides backup for misplaced tools
Includes matching Mid-size wallplate, measuring 3-3/16"x4-15/16". This is an oversize plate for use with larger volume outlet boxes or to hide surface irregularities
Trip threshold: 5ma - 1ma
Response time: 0.025 sec.

MPN:

SGF15V

Cross Reference:

Not Available

Color:

Ivory

Amperage:

15A

Condition:

New

UPC:

032664742378

Weight:

0.40 LBS
