Hubbell SNAPConnect Illuminated Ivory 3-Way Toggle Switch 15A SNAP1203ILINA

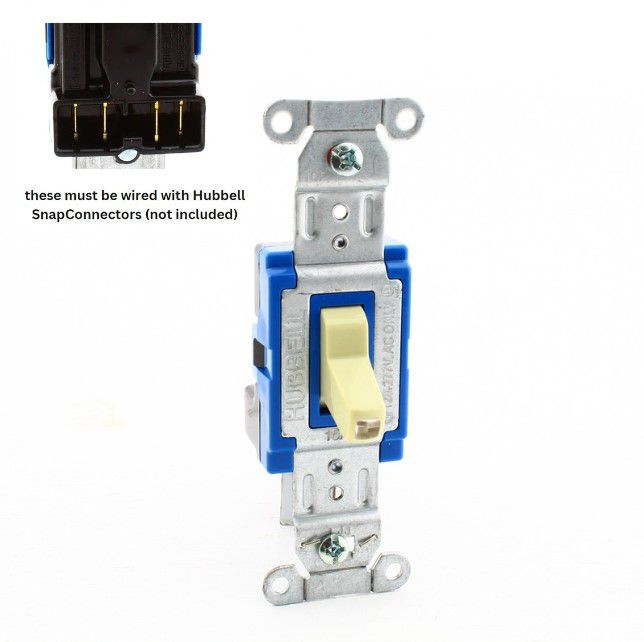

Hubbell SNAP1203ILINA ivory SNAPConnect switch with illuminated toggle. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. The tip of the toggle is illuminated with a blue LED light. Specification Grade, 3-way, rated 15A 120/277V AC (Rated .5HP @ 120VAC; 1.5HP @ 208VAC; 2HP @ 240VAC; 2HP @ 277VAC). Light is on with load OFF to make it easier to find in the dark. Each is individually packaged; packaging may differ from photo. Features include:

• Lighted toggle is illuminated (blue LED) when the load is OFF to make it easier to find in the dark
• Top-of-the-line heavy duty quality
• Steel, zinc plated bridge is corrosion resistant
• Requires SNAPConnect Connector for termination (sold separately)

As was mentioned several times above, these switches require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible 4-Wire connectors required for 3-Way Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

• SNAP3W1NA: Clear right angle terminal, 6 inch leads, solid wire
• SNAP3W2NA: Clear right angle terminal, 6 inch leads, stranded wire
