Product Description

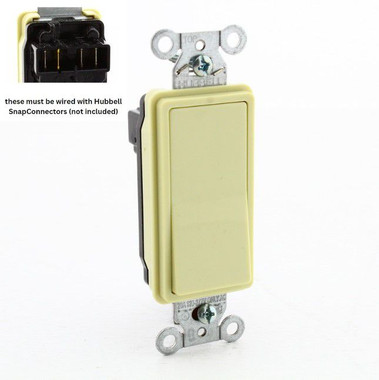

Hubbell SNAP2123INA ivory SNAPConnect rocker switch. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Commercial/Industrial Specification Grade, 3-way, rated 20A 120/277V AC. Each is individually packaged; packaging may differ from photo. Features include:
- Top-of-the-line industrial quality
- Steel, zinc plated bridge is corrosion resistant
- Requires SNAPConnect Connector for termination
As was mentioned several times above, these switches require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible 4-Wire connectors required for 3-way Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:
- SNAP3W1NA: Clear right angle terminal, 6 inch leads, solid wire
- SNAP3W2NA: Clear right angle terminal, 6 inch leads, stranded wire
MPN:
SNAP2123INA
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A
Condition:
New
UPC:
783585189857
Weight:
0.20 LBS
