- Leviton Motor Starter Switch DPST Double-Pole Single Throw w/Lockout 30A N3302
QTY Available to Ship:
20
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

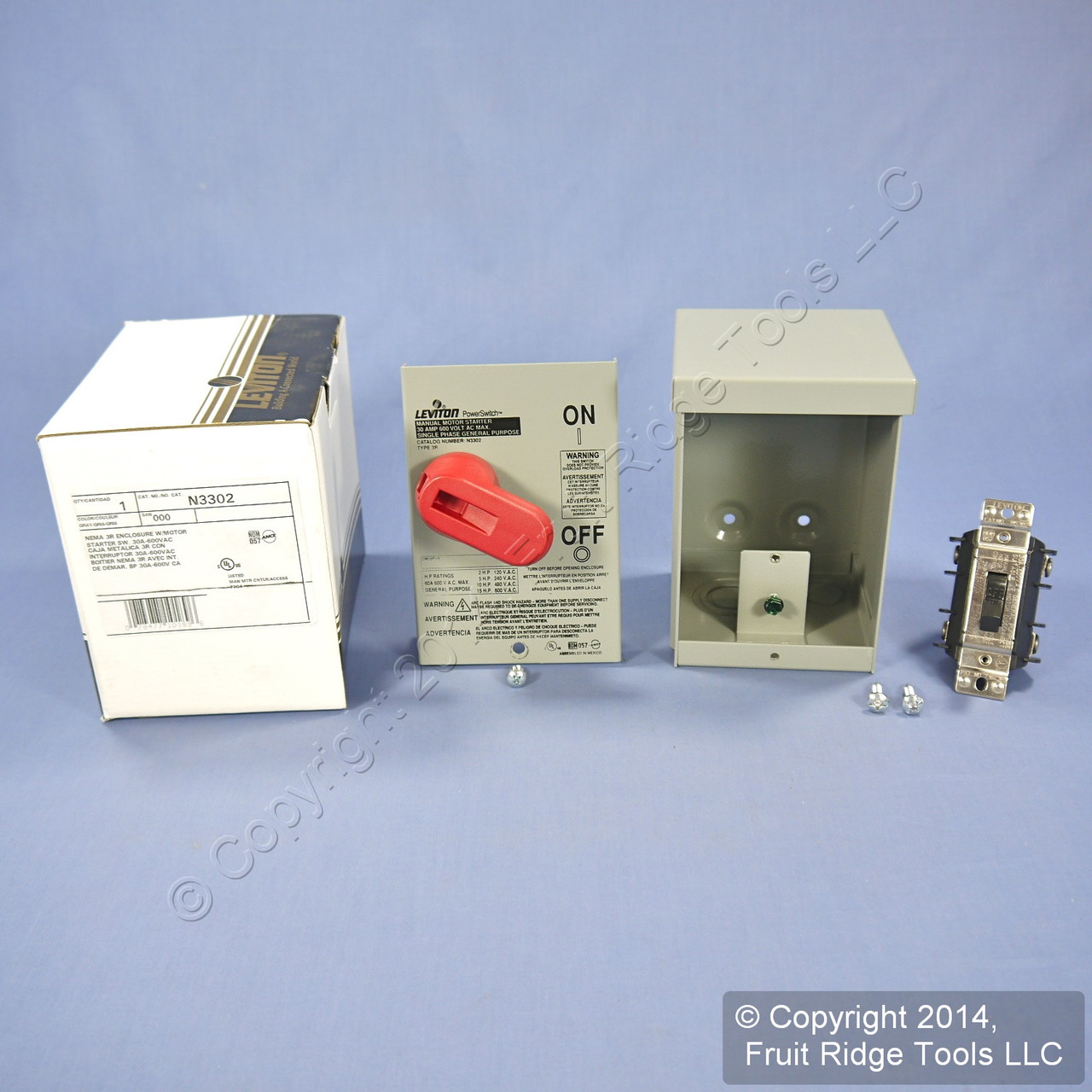

Leviton N3302 enclosed manual motor starting switch without overload protection. Industrial Specification Grade, back & side wired, double-pole, single throw, grounded to enclosure, 30A 3-phase 600V Max. It is rated: 2HP @ 120VAC; 5HP @ 240VAC; 10HP @ 480VAC; and 15HP @ 600VAC. Each is individually packaged with instructions. Features include:
- NEMA Type 3 metal enclosure with lockout slot
- Positive-contact design enhances fast-make/slow-break
- Silver-alloy contacts for maximum conductivity and service life
- Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal
- Oversized #10 triple-combination terminal screws are vibration resistant
- All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
- Insulating barrier between terminals provide isolation from each phase
- Nickel-plated brass mounting yoke for superior corrosion resistance
- Measures: 4.33"w x 6.15"h x 4.13"d
MPN:
N3302
Cross Reference:
Not Available
Color:
Gray
Amperage:
30A
Condition:
New
UPC:
078477101896
Weight:
3.35 LBS
