- Leviton Wired-In RAILROAD Surge Protector Filter Suppressor 20A 120V 51020-RR
QTY Available to Ship:
9
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

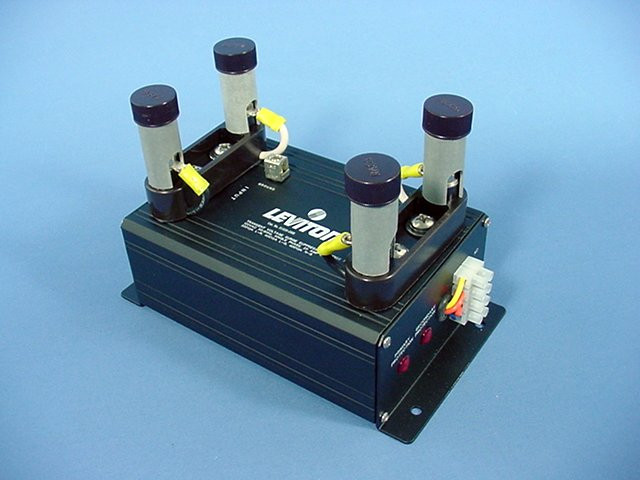

Leviton 51020-RR wired-in railroad surge protective device (SPD) with raised wiring terminal posts. Allows you to build surge suppression into your next project. Single phase, 20A 120VAC. This appears to have been originally designed for railroad applications; I assume it can be adapted for other uses. Features include:
- Provides surge protection to branch circuits
- Staged multi-component surge suppression circuitry provides clamping envelope that follows AC sine-wave contour
- For use by OEMs who wish to include surge protection as an equipment feature
- Primary and secondary suppression circuits are automatic resettable fuse protected
- NO/NC relay status contacts allow unit to be wired into remote monitoring if desired
- If surge protection is lost power is still provided to load until SPD module is replaced
- Max. Surge Current (test w. 8x20?s wave): L-N: 52kA
- Noise Rejection: 40-50dB(@ 5kH-100MHz)
- Operating Frequency Range: 50, 60Hz
- UL 1449 (2nd Ed.) Rating: L-N: 330Vpk; L-G: 400Vpk; N-G: 400Vpk
- MCOV (maximum continuous operating voltage): 150V AC
MPN:
51020-RR
Cross Reference:
Not Available
Color:
Black
Condition:
New
UPC:
078477949078
Weight:
3.05 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
