Leviton Distribution Surge Suppressor Panel 347/600V 3�Y 57347-M3S

Your Price: $825.00

QTY Available to Ship:
5

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

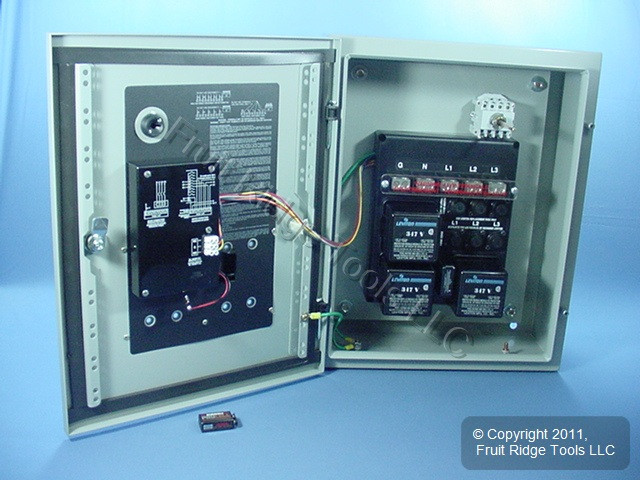

Leviton 57347-M3S surge protective panel. Industrial Specification Grade, 7 mode, 4-wire & ground, 347/600VAC 3-phase WYE. It has the following features:
  • Integral disconnect
  • Mounts at main distribution panels
  • Hybrid suppression circuitry with built-in redundancy provides complete protection on all phases even if one module fails
  • Modular design allows easy replacement of modules with the use of tools and without the need to shut down AC system power
  • Provide normal (phase to neutral) and common mode (neutral to ground) protection for WYE-configured 3-phase AC systems
  • Dry contacts for remote monitoring
  • "Series Connection" parallel operated (Kelvin/feed-through) rated for 100 Amps maximum continuous line current using #3 AWG conductors
  • Optically coupled remote-monitoring port allows use of the optional Remote Supervisor (Cat. #52000-RS).
  • Dual-stage fuse protection for primary and secondary surge suppression circuits
  • Housed in NEMA 12 case with hinged cover - surface or flush mountable.

MPN:
57347-M3S
Cross Reference:
Not Available
Color:
Gray

Condition:
New
UPC:
60078477030020
Weight:
42.00 LBS
