Hubbell Bryant INDUSTRIAL Yellow Straight Blade Connector Female Plug NEMA 6-20R 20A 250V 5469NCSY

Your Price: $9.49

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

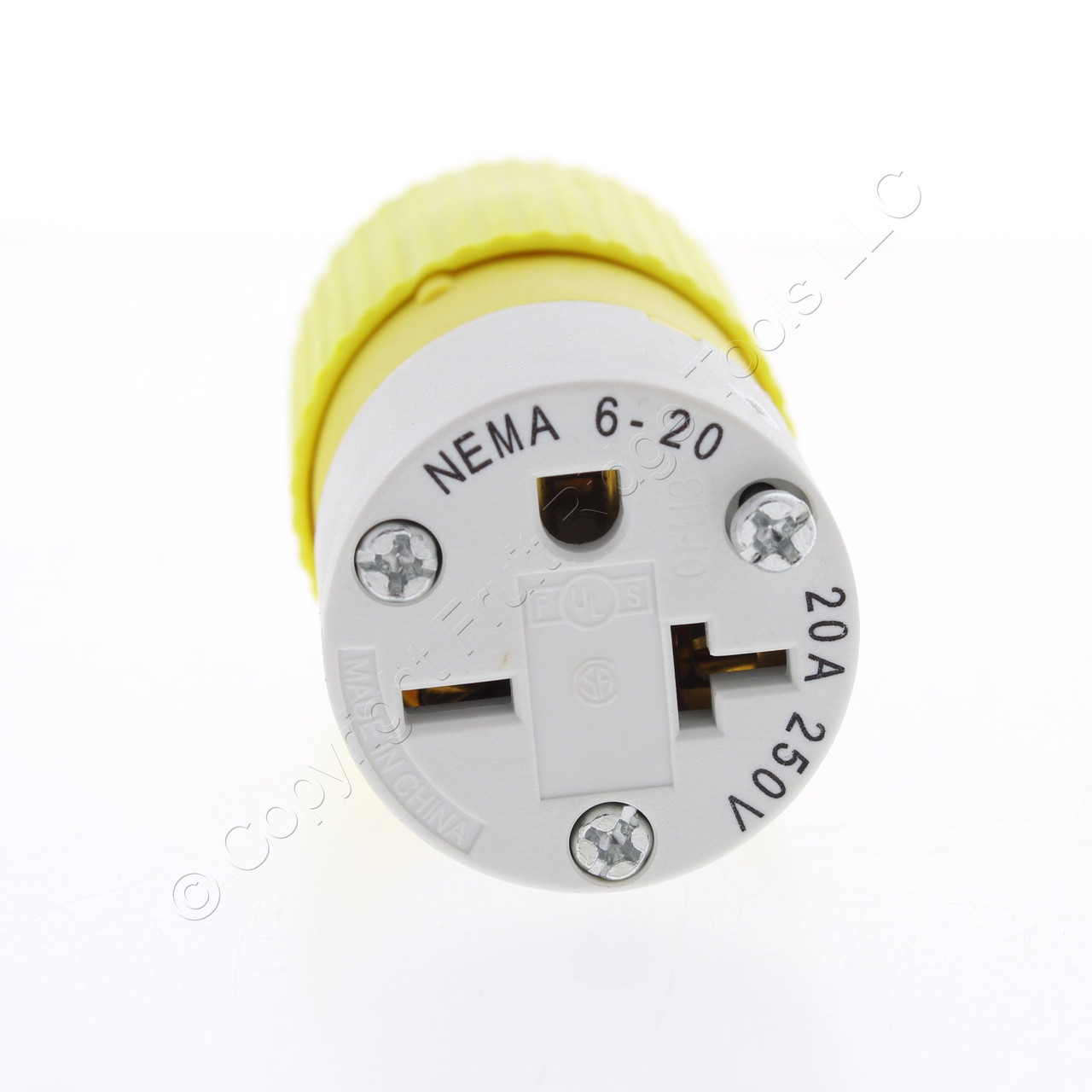

Bryant/Hubbell 5469NCSY straight blade connector in high visibility yellow (Bryant is a division of Hubbell). Tech-Spec Industrial Grade, NEMA 6-20R, 2-pole, 3-wire, grounding, rated 20A 250V. Each is individually packaged; packaging may differ from photo. Features include:

One-piece, rivetless connector contact design reduces chances for resistance and heat buildup. High performance, triple-wipe copper-alloy contacts have excellent spring properties and provide superior contact pressure and conductivity
Transparent terminal cover features a see-thru window to permit visual inspection for proper wiring. Individual wire pockets provide maximum conductor separation. "Tear- drop" design provides ease of entry for stranded copper conductors. Terminal designations are imprinted on terminal cover for easy identification
TPE dust seal surrounds cord, helping to prevent conductive dust, moisture and contaminants from entering the wiring chamber, thus minimizing the possibility of internal shorts. Tapered cover eliminates snagging of cord when dragged along floors
Amperage, voltage and NEMA line number imprinted on face for easy identification. Catalog number and rating are also visible - while in use. Three combination Phillips/slotted quick-fasten assembly screws simultaneously secure Triple-Gripper cord grip as device is assembled
Triple-Gripper Cord Grip with exclusive "Radius Teeth" design provides secure cord retention without damaging the cord jacket or electrical conductors. It automatically centers and secures cord as three assembly screws are tightened, eliminating the need for separate external cord grip screws
Face and body feature contrasting key for easy assembly
Industrial matte finish
Impact/chemical resistant, toughened nylon construction
Insulated design has no exposed metal parts on hand-held side
Universal cord grip design accepts .300 - .655" cord without inserts or adapters
Double wall construction provides extra protection for internal components
Wide-rib, non-slip hand grip
Combination Phillips/slotted captive terminal screws are backed out and ready for wiring

MPN:

5469NCSY

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

781786134171

Weight:

0.15 LBS
