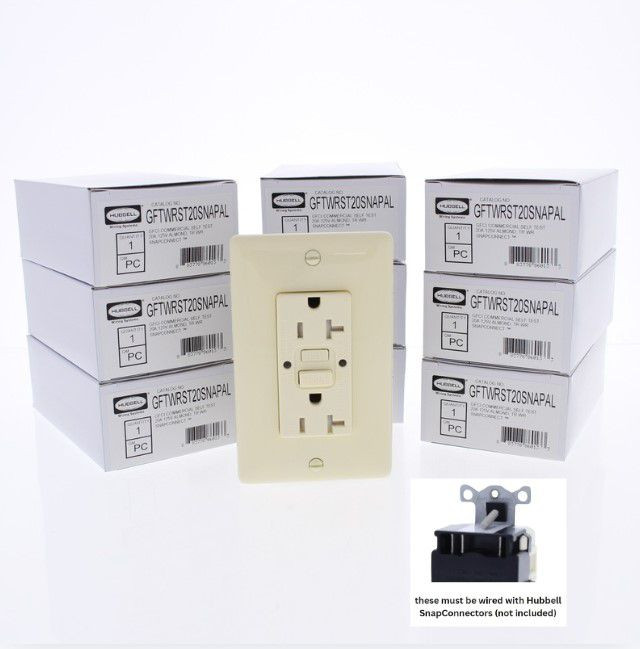

10 Hubbell 20A SNAP-Connect Self-Testing Tamper Weather Resistant GFCI Outlet Receptacles Almond GFTWRST20SNAPAL

10 Hubbell GFTWRST20SNAPAL SNAP-Connect almond Autoguard Self-Testing weather-resistant and tamper-resistant GFCI receptacles. Please note that these do not have screw terminals; they must be wired with Hubbell Snap & QT Series connectors (purchased separately - listed below). We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. This is a specialty item intended for the professional installer, so if you are not already familiar with the SnapConnect system, you should not buy this.Commercial Grade, NEMA 5-20R, 2-Pole 3-Wire Grounding, requires SnapConnect right angle pigtailed terminal (purchased separately), rated 20A-125V at receptacle and 20A-125V feed-through. Hubbell AUTOGUARD GFCI receptacles continually test and monitor for "people protection capability" automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Each is individually packaged; packaging may differ from photo. Features include:

• Outlet requires SnapConnect right angle pigtailed terminal (purchased separately)
• Safety switch mechanism energizes blade contacts only when both openings are simultaneously engaged, helping ensure hairpins, keys, etc., will be locked out
• UV and corrosion resistance for harsh and damp applications
• Hubbell AUTOGUARD GFCI receptacles continually test and monitor for "people protection capability" automatically
• Clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status
• For added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur
• TEST and RESET functions work together so that a tripped GFCI cannot be reset if GFCI circuit no longer provides ground fault protection
• RESET button is blocked if GFCI protection has been compromised, eliminating the possibility of end-users incorrectly assuming that a reset GFCI is providing ground fault protection when it actually is not
• Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
• Thermoplastic nylon housing - this high impact and ultraviolet resistant construction provides resilience in harsh environments
• Clear visual indication of GFR status - LED indicating lights: green LED (power to the device); red LED (trip condition/ground fault condition); flashing red LED (end of life)
• Matching standard size thermoplastic wallplate included

As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

• SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
