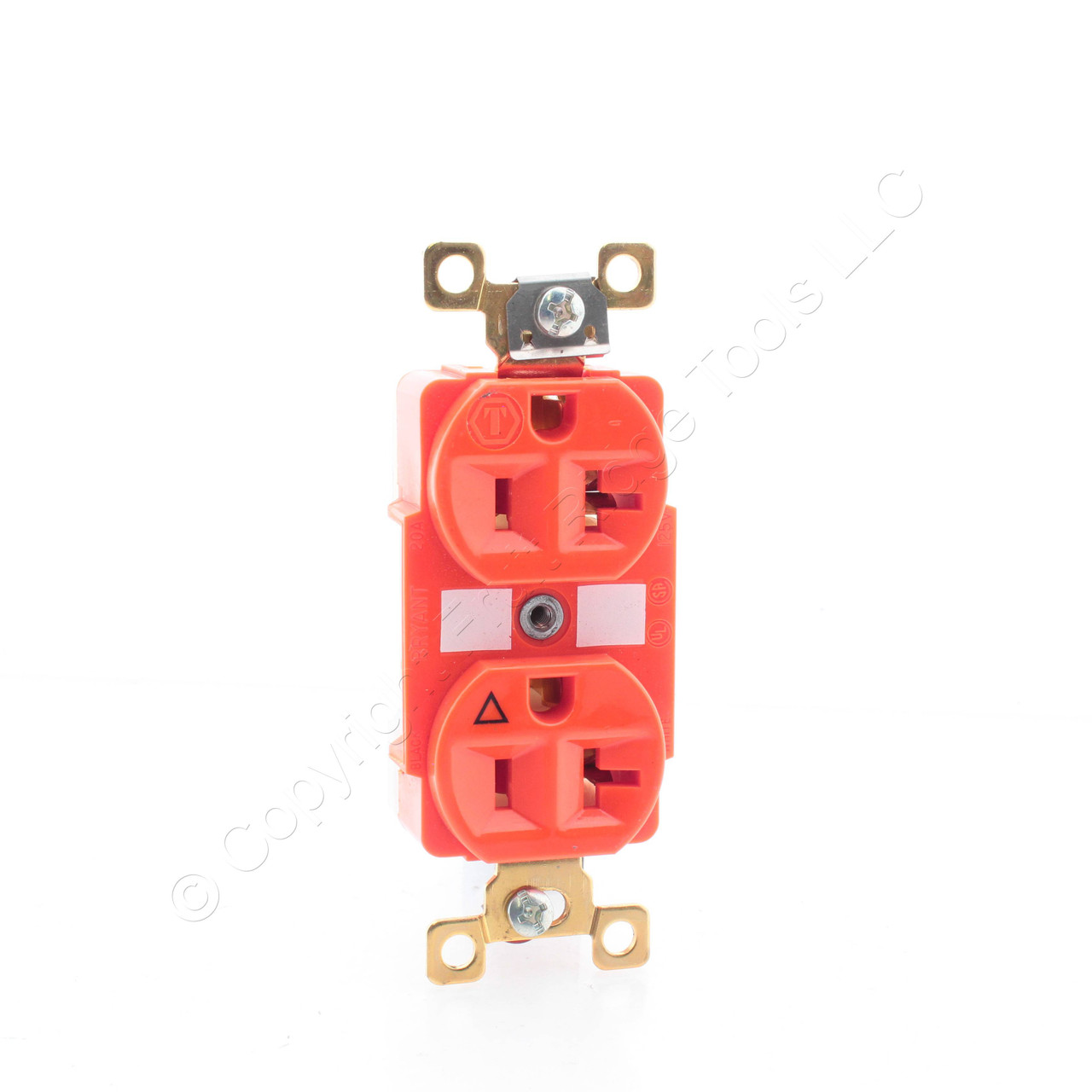

Bryant Hubbell Orange Isolated Ground INDUSTRIAL Receptacle Duplex Outlet 20A BRY5362IG

Your Price: $9.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Bryant/Hubbell BRY5362IG orange straight blade isolated ground receptacle (Bryant is a division of Hubbell). Tech-Spec Industrial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, isolated ground, rated 20A 125V. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Each is individually packaged; packaging may differ from photo. Features include:

Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors
Heavy-duty 0.050" steel yoke is wrapped around receptacle and locked in place for maximum mechanical strength and security
Back wiring: eight wiring pockets for convenient feed thru wiring, clamp-type terminals accept up to #10 wire
Terminal screws: brass combination Phillips/slotted/Robertson binding head accepts up to #10 wire
Approved for CU wire only
Large green, combination Phillips/slotted/Robertson hex head grounding screw
Back wire ground clamp for quick and convenient wiring
Center splined bushing interlocks with receptacle body to prevent rotation when fastening wall plates
Easily accessible break-off tab for two-circuit wiring
High-performance brass line contacts deliver excellent conductivity for low resistance, low heat rise. Triple-wipe design assures contact at three points on the plug blades. Superior spring properties and the rivetless, one-piece construction provide reliable, long-life blade retention
Double-wipe brass grounding contacts
Strip gauge for accurate wiring
Washer-type, break-off plaster ears
Thread cleaning captive mounting screws

MPN:

5362IGZ

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

781786005334

Weight:

0.25 LBS
