Hubbell SNAP2182RIGTRA Red Isolated Ground SnapConnect Hospital Grade Tamper Resistant Receptacle Outlet 20A

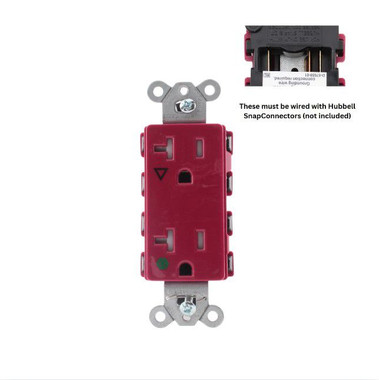

Hubbell SNAP2182RIGTRA red duplex SnapConnect hospital grade decorator isolated ground tamper resistant receptacle. The bright red color is great for locations where you want to call attention to this special outlet: workshops, garages, computer rooms, etcPlease note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Hospital grade, SnapConnect wired, NEMA 5-20R, 2-pole, 3-wire, isolated ground, rated 20A 125V. Hospital Grade devices are top of the line in their category, designed for the high-abuse environments typically found in health care facilities. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Grounding of this device requires that an isolated ground path be established from the receptacle grounding terminal to a suitable equipment grounding point "upstream" from the device. Each is individually packaged; packaging may differ from photo. Features include:

• Patented tamper resistant design eliminates plug-in difficulty. Provides protection that feels like it is not even there: tamper resistant...NOT plug resistant
• Abuse resistant nylon for extra heavy use applications
• SNAPConnect eliminates exposed live parts
• Stainless steel autoground clip
• 2-pole, 3-wire, rated at 20A 125V

  As was mentioned, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

  • SNAP1RA: solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
  • SNAP2RA: stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
  • SNAP1RNA (assembled in USA): solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
  • SNAP2RNA (assembled in USA): stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material


  MPN:
  SNAP2182RIGTRA
  Cross Reference:
  Not Available
  Color:
  N/A
  Amperage:
  20A


  Condition:
  New
  UPC:
  783585552453
  Weight:
  0.20 LBS
