- Hubbell SNAP2162L Brown SnapConnect Duplex Outlet Receptacle LED Indicator 20A
QTY Available to Ship:
100
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

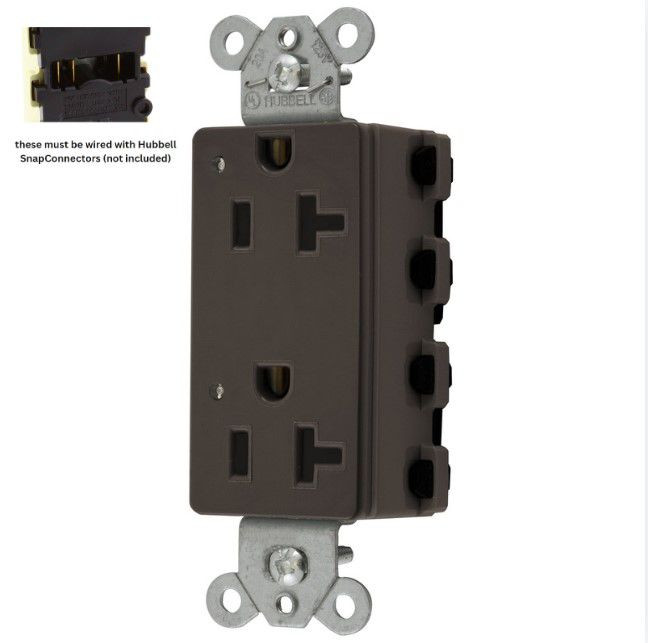

Hubbell SNAP2162L brown duplex SnapConnect decorator receptacle with twin LED power indicators on the face. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Extra heavy duty specification grade, SnapConnect wired, NEMA 5-20R, 2-pole, 3-wire, grounding, rated 20A 125V. Each is individually packaged; packaging may differ from photo. Features include:
- Twin LED indicators on the face to provide positive indication of power state
- Abuse resistant nylon for extra heavy use applications
- SNAPConnect eliminates exposed live parts
- Stainless steel autoground clip
- 2-pole, 3-wire, rated at 20A 125V
- SNAP1RA: solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
- SNAP2RA: stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
- SNAP1RNA (assembled in USA): solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
- SNAP2RNA (assembled in USA): stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
As was mentioned, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:
MPN:SNAP2162LCross Reference:Not AvailableColor:N/AAmperage:20A
Condition:NewUPC:783585248530Weight:0.20 LBSMost orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
