Hubbell Brown SnapConnect Receptacle 1/2 "CONTROLLED" 20A Outlet SNAP5362C1

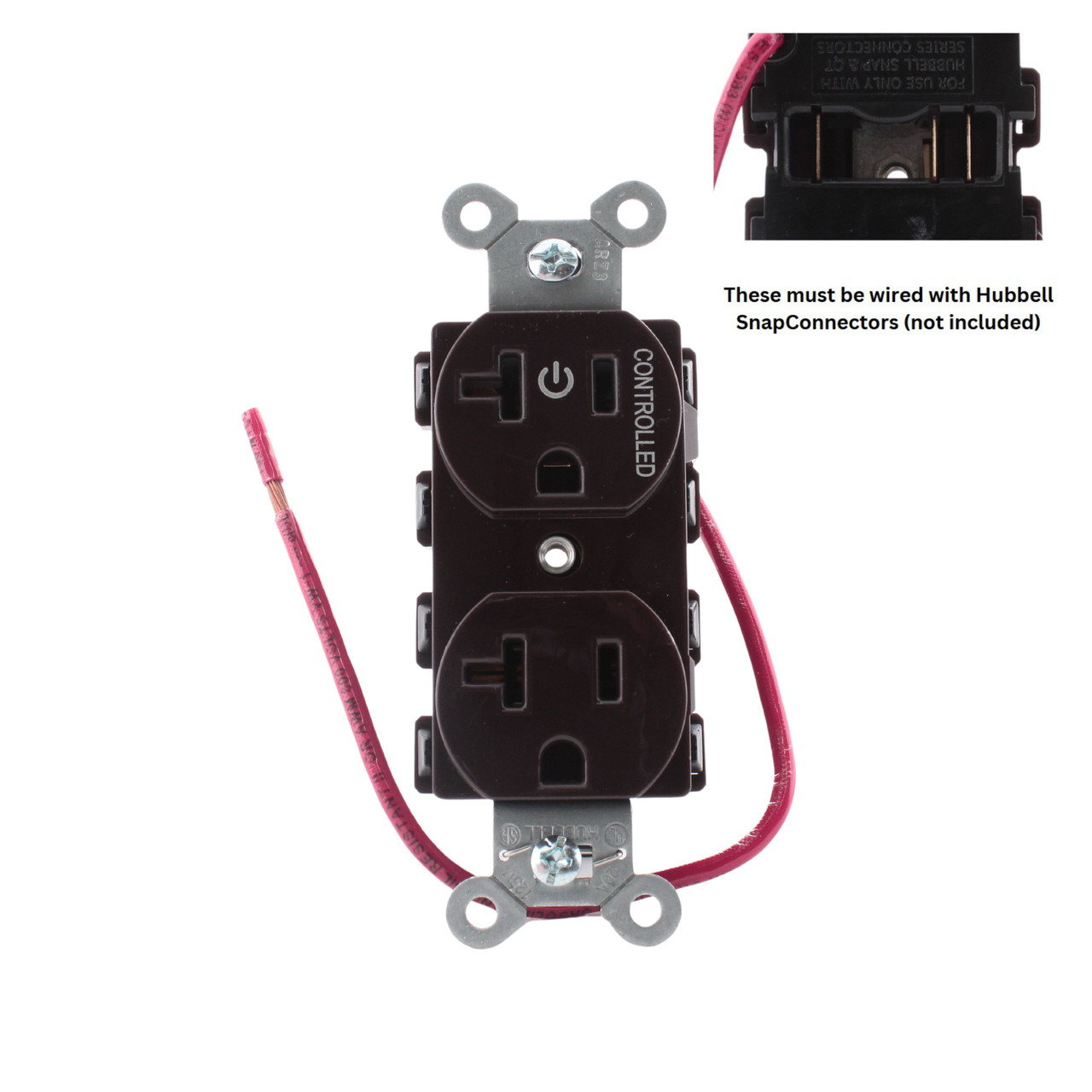

Hubbell SNAP5362C1 brown SNAPCONNECT industrial receptacle. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Outlet is permanently marked "CONTROLLED" and is for use in a Hubbell LoadLogic or similar plug control system; typically found in commercial, retail, school, and hotel applications. This would be used as one of the downstream devices and would be controlled by an upstream switched receptacle; this is NOT a switched receptacle. Industrial Grade, grounding, back and side wired, 2-pole, 3-wire, NEMA 5-20R, rated 20A 125VAC. Features include:

• Outlet requires SnapConnect right angle pigtailed terminal (purchased separately)
• Outlet is permanently marked "CONTROLLED" for use in a Hubbell LoadLogic or similar plug control system; typically found in commercial, retail, school, and hotel applications
• One outlet is permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
• Control one outlet per device for 50% controlled applications
• Markings can be read regardless of mounting orientation
• Complements Hubbell's Load:Logic control system or other available energy management system

As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

• SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
