- Hubbell Brown Duplex Decorator Receptacle Hospital Grade Outlet 15A 125V 2172
QTY Available to Ship:
58
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

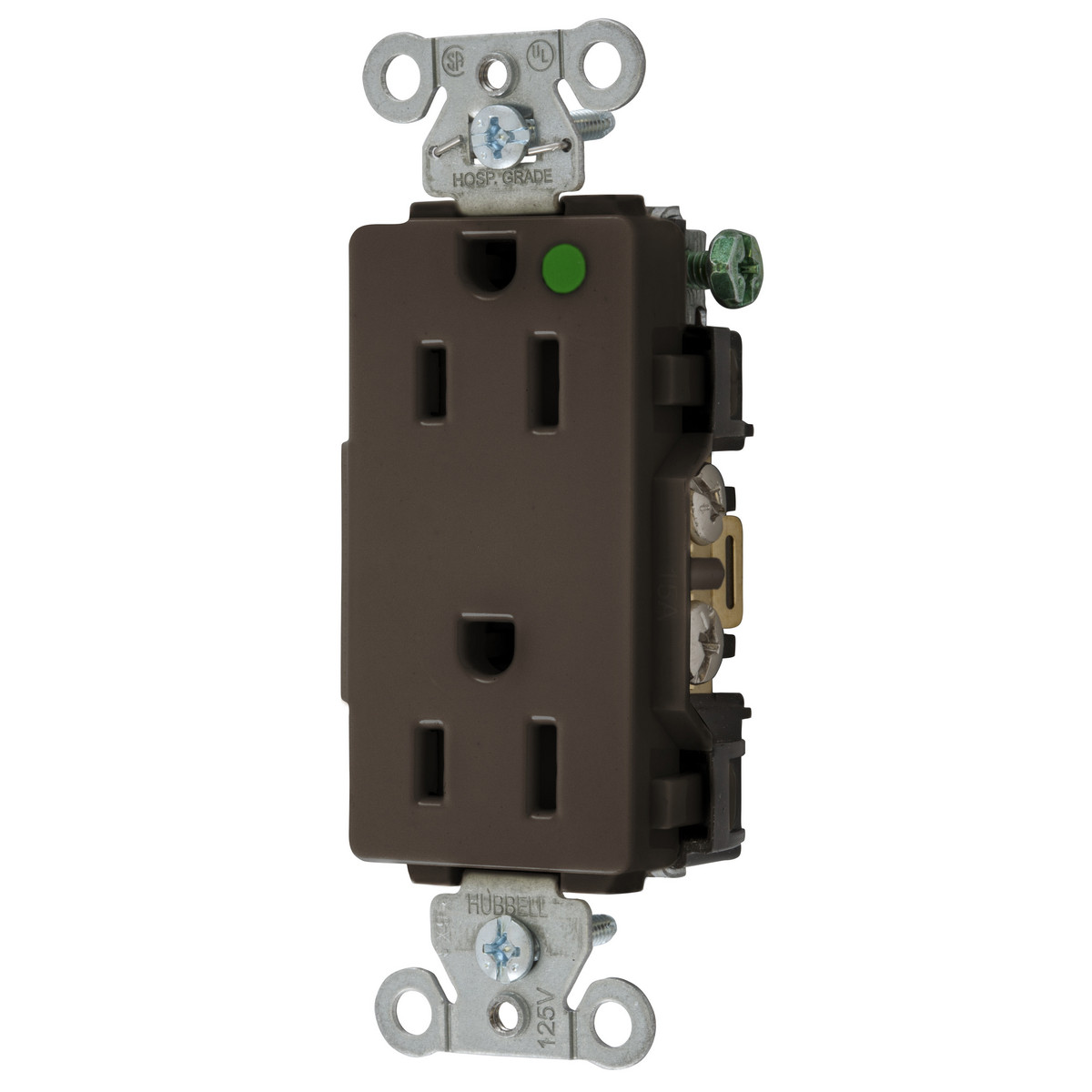

Hubbell 2172 brown decorator duplex receptacle. Hospital Grade, 2-pole, 3-wire, NEMA 5-15R, back and side wired, rated 15A 125V. Features include:
- Exclusive bypass contact design increases contact pressure, lowering the operating temperature
- Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas
- High tech reinforced thermoplastic polyester (RTP) back is tough and heat resistant
- External wiring clamps allow for visual inspection of the terminals
- Unique strand containment feature on the terminal ?bundles? the wire, ensuring 100% clamping of wire strands and reducing heat from the termination
- Exclusive bypass contacts are made of brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power
- Barbed contact assembly arms reduce possibility of face/base separation
- Back wired ground terminal allows faster, easier installation
- Patented ground contact provides redundant grounding
- Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties
- Providing contact stability, high performance housing material will reduce heat buildup giving you long lasting performance
- Deep body design increases impact and chemical resistance
MPN:
2172
Cross Reference:
Not Available
Color:
N/A
Amperage:
15A
Condition:
New
UPC:
783585196657
Weight:
0.15 LBS
