Hubbell Black Hospital Grade SNAPConnect 20A Tamper Resistant Outlet Receptacle 2.0 USB SNAP8300USBBK

Your Price: $29.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

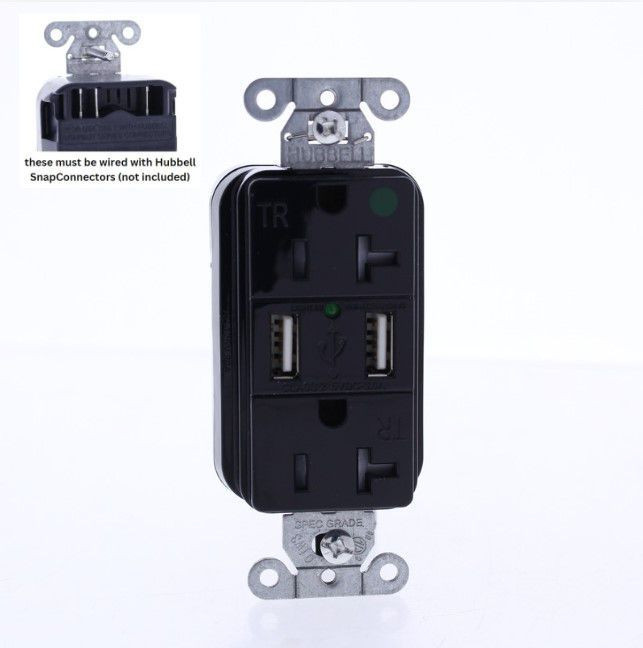

Hubbell SNAPConnect SNAP8300USBBK black tamper resistant decorator duplex hospital grade outlet with 2 USB charger ports.Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Charge your USB powered electronics without giving up an outlet - Compatible with USB 1.1/2.0/3.0 devices. Hospital Grade, NEMA 5-20R, 2-pole, 3-wire, grounding, SNAPConnect wired, rated 20A 125V, two USB type 2.0 ports 3 Amp, 5 Volt DC . Features include:

Two USB ports 3 Amp, 5V DC, type A, class 2.0
Charges two devices simultaneously
Tamper-Resistant decorator duplex receptacle
Green LED indicator to show USB power available
Compatible with USB 1.1/2.0/3.0 devices
Patented tamper resistant shutter design provides tamper resistance, not plug resistance

As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material

MPN:

SNAP8300USBBK

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

883778305603

Weight:

0.30 LBS
