Eaton Ivory Industrial Decorator Wing Receptacle Duplex Outlet 5-20R 20A 6362V

Your Price: $6.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

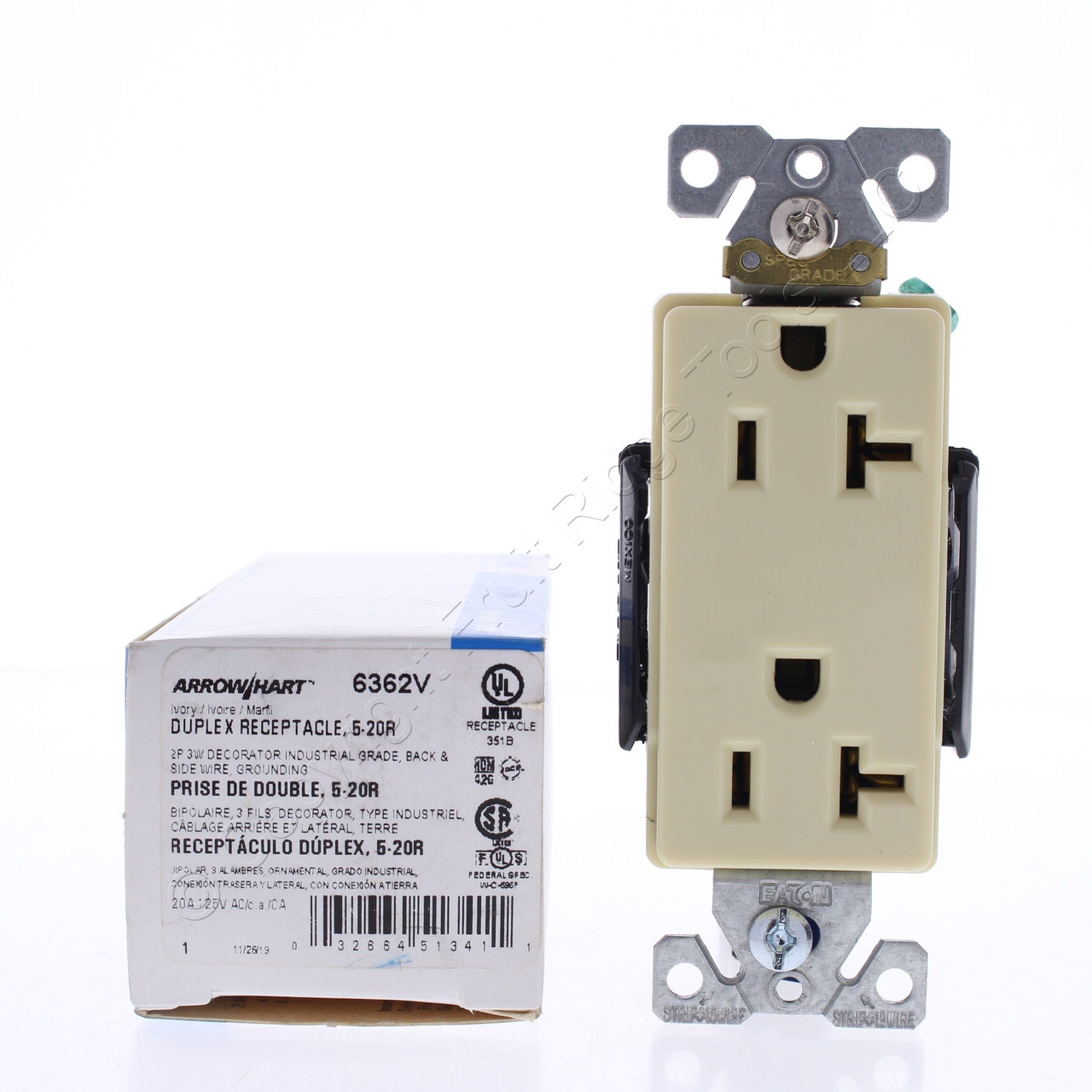

Eaton 6362V ivory decorator duplex straight blade receptacle with special "wing" terminal guards. Industrial Specification Grade, NEMA 5-20R, back and side wired, terminal guards, grounding, rated 20A 125V. Each is individually packaged; packaging may differ from photo. Features include:

Wing-type screw terminal guards provide insulation from conductive surfaces
Sturdy, compact design meets the demands of commercial spec grade performance
Excellent plug blade retention provided by triple-wipe 0.032" (0.81mm) triple-wipe brass line contacts and 0.050" (1.27mm) brass ground
High impact and chemical-resistant nylon face
0.035" (0.89mm) galvanized steel, wrap- around yoke mounting strap for superior assembly security; extra length/width helps reach large panel cutouts for Code compliance
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used

MPN:

6362V

Cross Reference:

Not Available

Color:

N/A

Amperage:

20A

Condition:

New

UPC:

032664513411

Weight:

0.20 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
