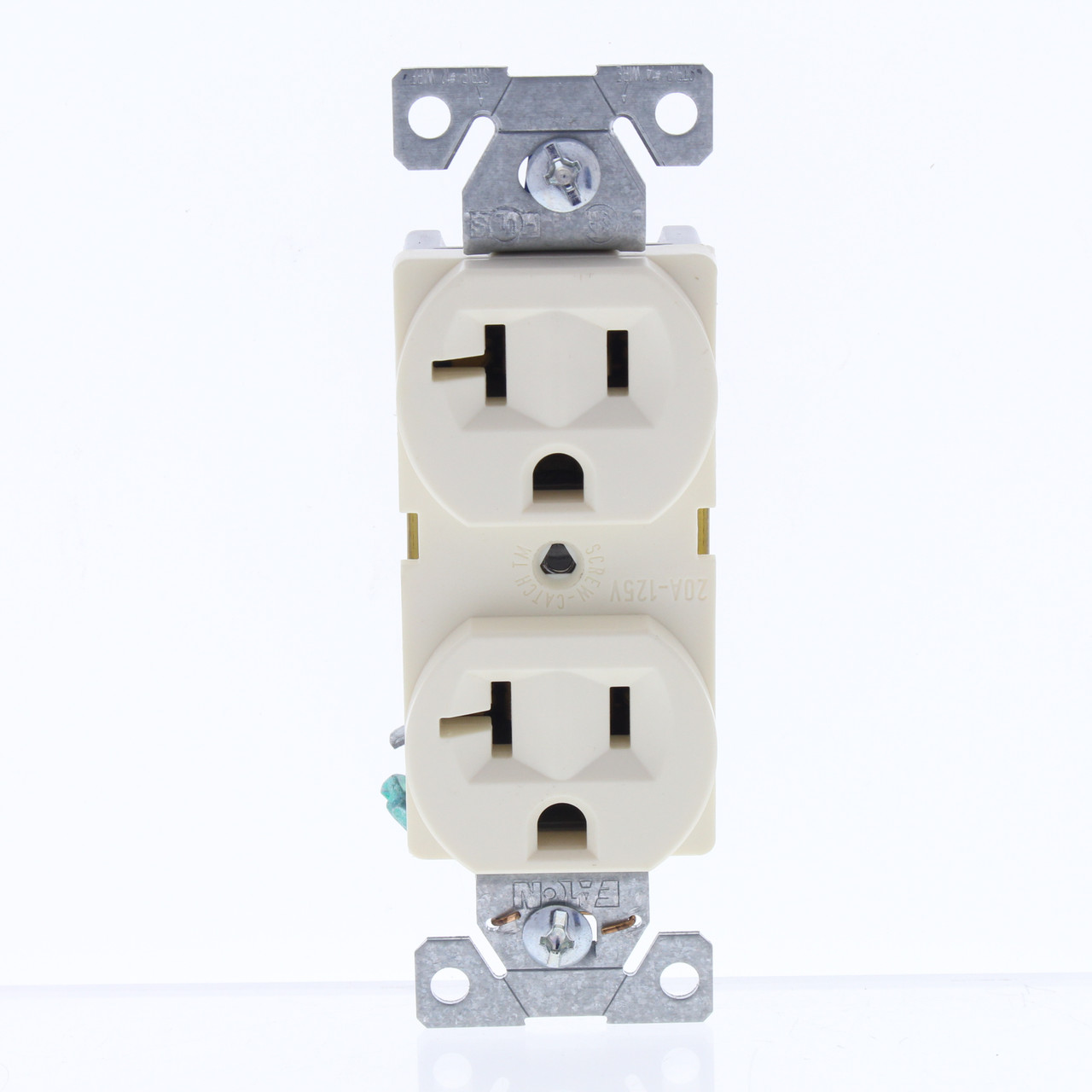

Eaton Almond COMMERCIAL Grade Duplex Outlet Receptacle NEMA 5-20R 20A Bulk BR20A

Your Price: $2.99

QTY Available to Ship:

104

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Eaton BR20A almond duplex receptacle. Commercial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, grounding, back and side wired, rated 20A 125V. Bulk packed loose with no individual packaging; as a result some may have minor dings. Features include:

Excellent plug blade retention provided by 0.032" triple-wipe brass line contacts and 0.050" brass ground
Sturdy compact design meets the demands of commercial specification grade performance
0.035" galvanized steel, wrap-around yoke mounting strap for superior assembly security
Larger mounting strap increases wall board contact area, virtually eliminating "floating" installations
Large-head terminal screw, backed out and staked, accept No. 10 copper or copper-clad wire
High impact and chemical resistant nylon face
Mounting screws use square head tip for fast installation
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures; it provides redundant measure of ground continuity when a jumper is used

MPN:

BR20A

Cross Reference:

Not Available

Color:

Almond

Amperage:

20A

Condition:

New

UPC:

032664560132

Weight:

0.20 LBS
