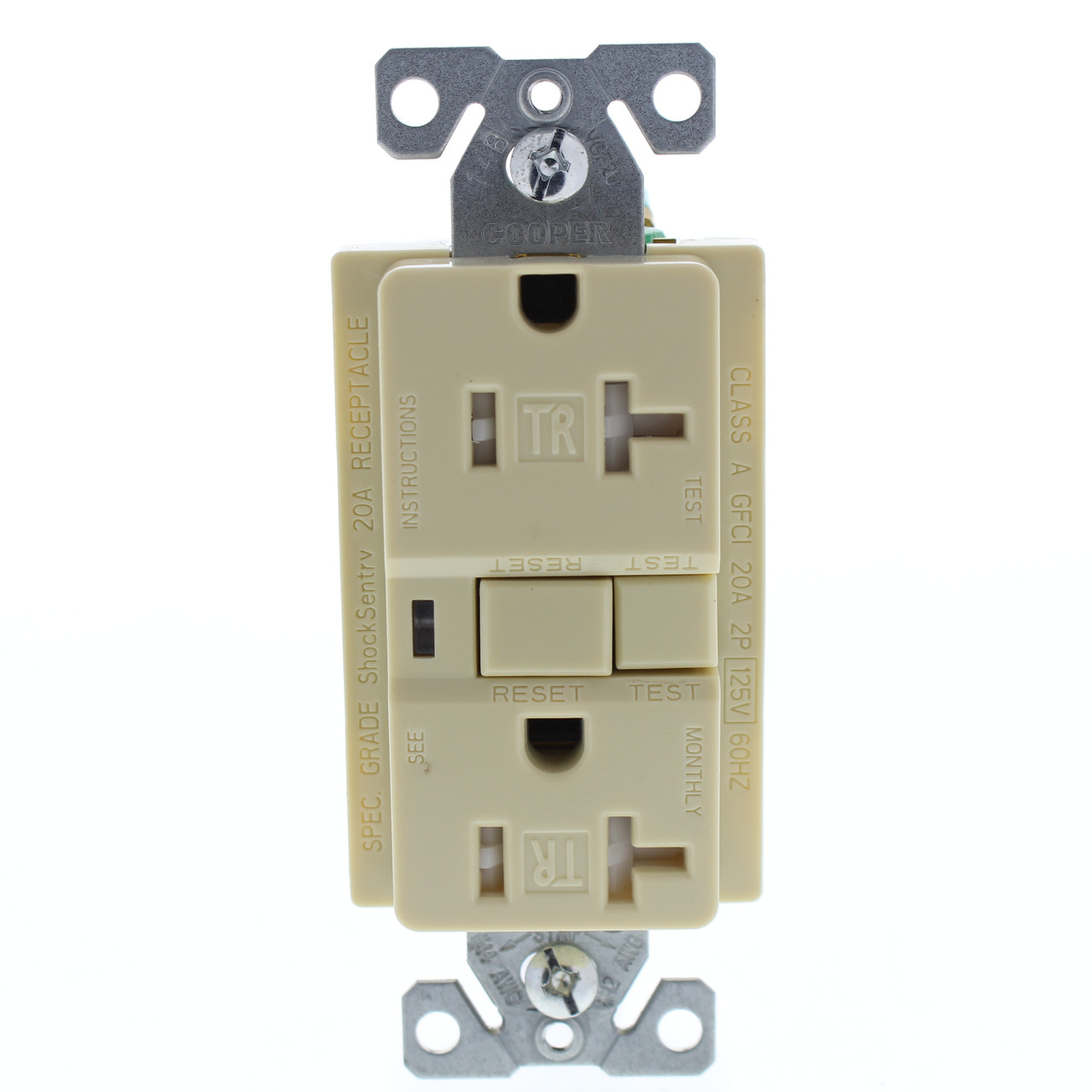

Cooper Ivory Tamper Resistant Straight Blade GFCI GFI Receptacle with Quick-Connect Module NEMA 5-20 20A 125V TRVGF20VM

Your Price: $12.00

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Cooper TRVGF20VM ivory tamper resistant GFCI Decorator receptacle with quick-connect module. Heavy Duty Grade, NEMA 5-20R, back and side wired, rated 20A-125V at receptacle and 20A-125V feed-through. Each is individually packaged; packaging may differ from photo. Features include:

Wiring Module Locks and Latches to the Device Body Providing Double the Connection Security
Modules are Constructed of an Impact-Resistant Polycarbonate
THHN Wire Type
Sturdy, compact design meets the demands of commercial spec grade performance
Patented, spring-loaded mechanical shutter system provides reliable tamper resistance
Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
Tamper Resistant versions provide compliance with 2011 NEC section 406.12 and provide significantly improved protection over traditional receptacles with removable plastic safety caps
TEST and RESET functions work together so that a tripped GFCI cannot be reset if GFCI circuit no longer provides ground fault protection
RESET button is blocked if GFCI protection has been compromised, eliminating the possibility of end-users incorrectly assuming that a reset GFCI is providing ground fault protection when it actually is not
Cannot be reset if neutral is not present. GFCI can still be tripped with TEST button under this condition
Large visual indicator light gives quick notification of a tripped or "end of life" condition
Unbreakable nylon construction provides unsurpassed chemical and impact resistance
Ground termination with backwire clamp provides secure wiring and reduces installation time
Horizontal Test/Reset button alignment provides larger unobstructed area; buttons color matched for superior aesthetics
Line-load mis-wiring protection, will not provide power downstream when wired incorrectly
Shock Sentry lock-out function protects from miswired line-load connections and GFCI circuitry damage
Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
Matching standard size thermoplastic wallplate included

MPN:

TRVGF20VM

Cross Reference:

Not Available

Color:

Ivory

Amperage:

20A

Condition:

New

UPC:

N/A

Weight:

0.35 LBS
