Bryant Clear Quick-Tech Terminal 6" Stranded Leads for Duplex Receptacle QT6R2

Your Price: $1.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

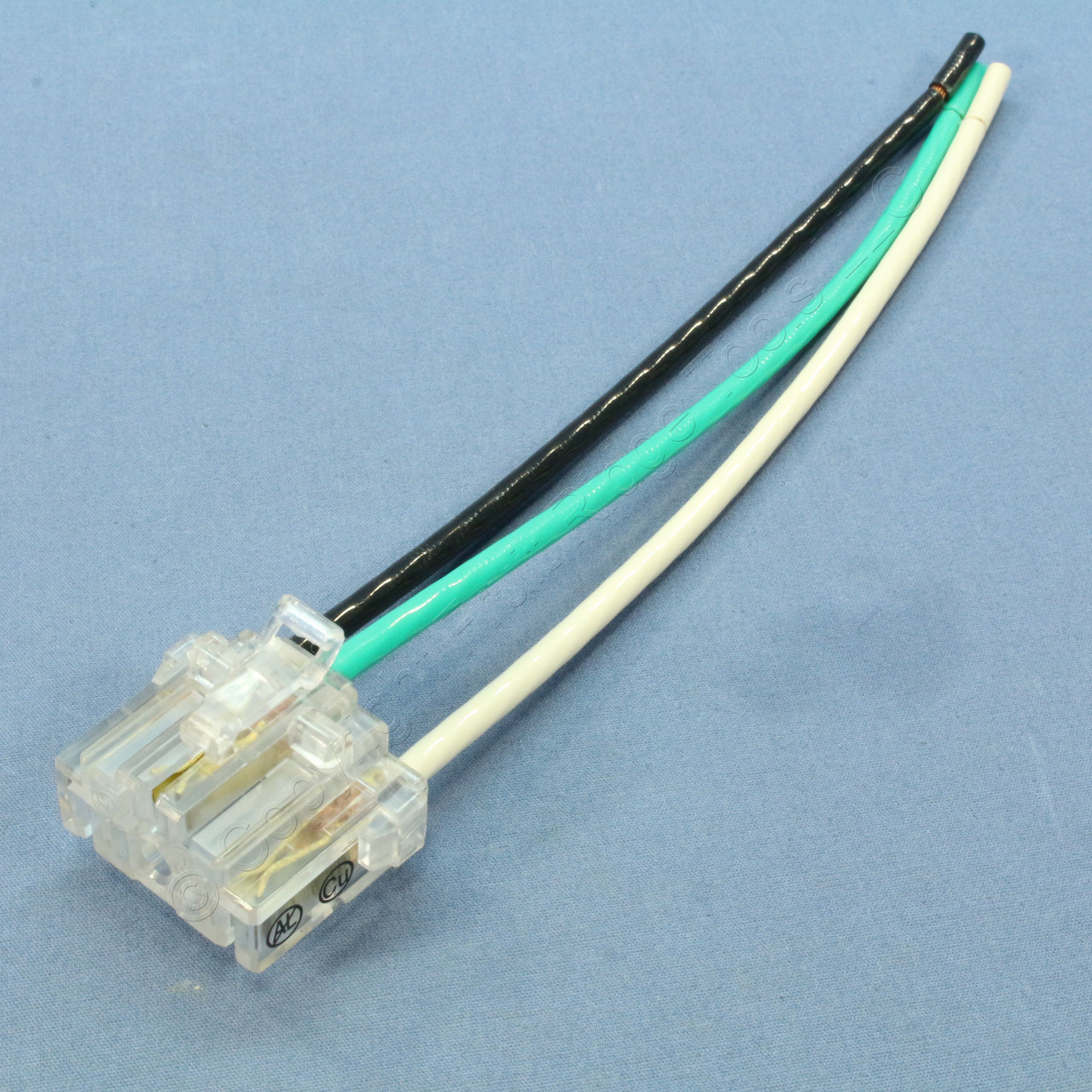

Bryant QT6R2 Quick-Tech modules for duplex straight blade receptacles. Engineered for fast and easy installation. Each is individually packaged; packaging may differ from photos. Features include:

Bryant's Quick-Tech connectorized receptacles provide an amazingly quick and simple wiring method. Quick-Tech allows you to save up to three minutes of total installation time per duplex, compared to conventionally terminated devices
The installation savings comes from the Quick-Tech terminal with its pre-cut and pre-stripped factory terminated leads. This installs at the rough-in stage of the project just like regular pigtails. A protective wrapper covers the terminal, keeping it free of plaster, paint and other debris until the receptacle is ready to be installed
At trim-out, the receptacle quickly connects to the pre-wired Quick-Tech terminal. Simply remove the protective plastic wrapper and push the connector into the back of the receptacle. It's that easy! No wires to strip or terminal screws to tighten. Actual installation can be completed in less than a minute
The Quick-Tech pre-wired terminal and receptacle are both fully insulated so there are no terminals left exposed. Wrapping the receptacle with electrical tape becomes unnecessary
With Quick-Tech terminals the easy to grip latch connects to the back of the receptacle with an audible click, providing consistent, trouble free electrical connection every time. The stepped terminal design connects the ground contact first and then both line contacts
The ground contact uses a single piece of brass to continuously connect the terminal contact to the ground blade of a plug. Quick-Tech receptacles also have a stainless steel auto-ground clip on the mounting strap
Bryant Quick-Tech receptacles are constructed of nylon for optimum durability and resistance to abuse. The Quick-Tech terminals are molded in impact resistant clear polycarbonate that allows for easy inspection of the contacts

MPN:

QT6R2

Cross Reference:

Not Available

Color:

Clear

Amperage:

20A

Condition:

New

UPC:

781786410015

Weight:

0.05 LBS
