- Eaton LynxPower MiniLine Quick Connect Cordset 16/3 AWG 6' Pigtail AHML3C4XC060F
QTY Available to Ship:
8
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description

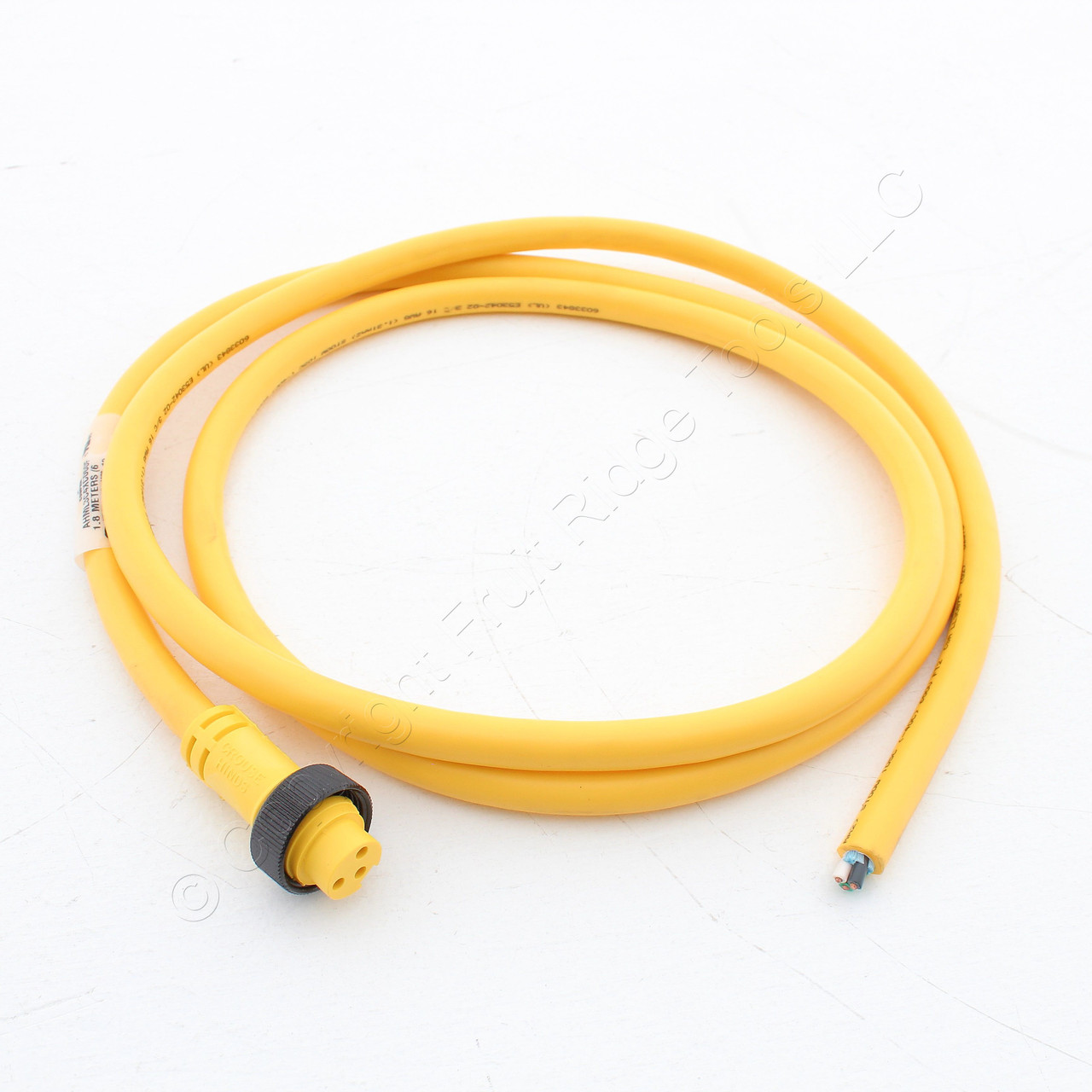

Eaton AHML3C4XC060F LynxPOWER passive mini-line cordset (Crouse Hinds is a division of Eaton). Female straight 3-pole plug with internally threaded coupler and 6-foot 16/3 AWG STO pigtail. Features include:
- Factory molded-to-cable cordsets provide quick connect capability
- Modular components allow for easy expansion and reconfiguration without the need for re-wiring; eliminates the need for multiple cable assemblies, reduces installation time, reduces design time and lessens the need for special tools.
- Environmentally sealed ends rated at IP68 to prevent the ingress of dust, water and other contaminants to reduce maintenance and downtime
- Vibration-resistant ratchet couplers assure cordsets stay connected under load
- Superior female contact design with stainless steel sleeve for minimal degradation
- End-to-cable molded junction securely bonds for excellent reliability
- Internal contact support maintains pin location and proper keyway alignment
- Shroud and cork design exceeds IP68 and NEMA 6P rating (rated 1,200 psi hose down spray)
- Easy stripping jacketed cable design allows fast stripping with simple hand tools; high flex copper stranding delivers improved flexibility; multiple cable options
MPN:
AHML3C4XC060F
Cross Reference:
Not Available
Color:
N/A
Amperage:
13A
Condition:
New
UPC:
032664688171
Weight:
0.60 LBS
