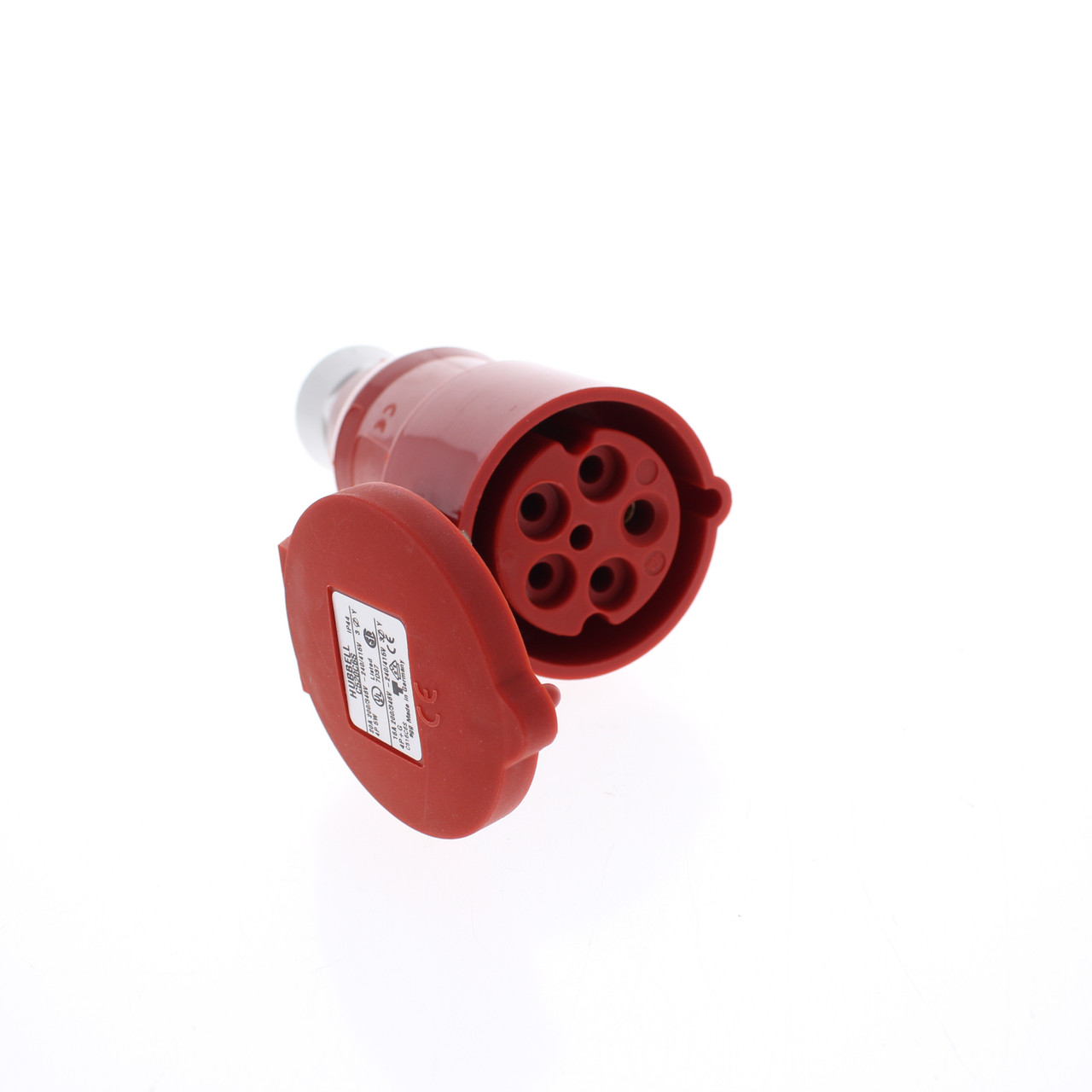

New Hubbell Red Pin & Sleeve Female Connector Splashproof IP44 3-Phase 20A 200-415V 4P5W C520C6S

Hubbell C520C6S red pin and sleeve splashproof IP44 connector. Rated 3-Phase 20A 200/346 - 240/415V, 4-Pole 5-Wire grounding 14-10 AWG gauge; Cord grip range 0.375"-0.625". The device has a natural designed grip that makes it easy to work with during connection. The cable entry is for flex and convex cables and the cable is secured through a flip aside cable clamp. The installation is easy done due to the clear terminal marking. After connecting the cables the housing is easily closed by a twist. Each is individually packaged; packaging may differ from photo. Features include:

• Hubbell's design incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations
• Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance
• Broaches oxide film to achieve low resistance contact for cooler operation
• Features a V-0 flammability rating
• Locking ring torque tabs for a reliable seal for maximum environmental protection
• Shrouded cover arm offers a compact internal swing arm is fully shrouded, improving durability
• Pocketed recessed screws prevent slippage of the screwdriver
