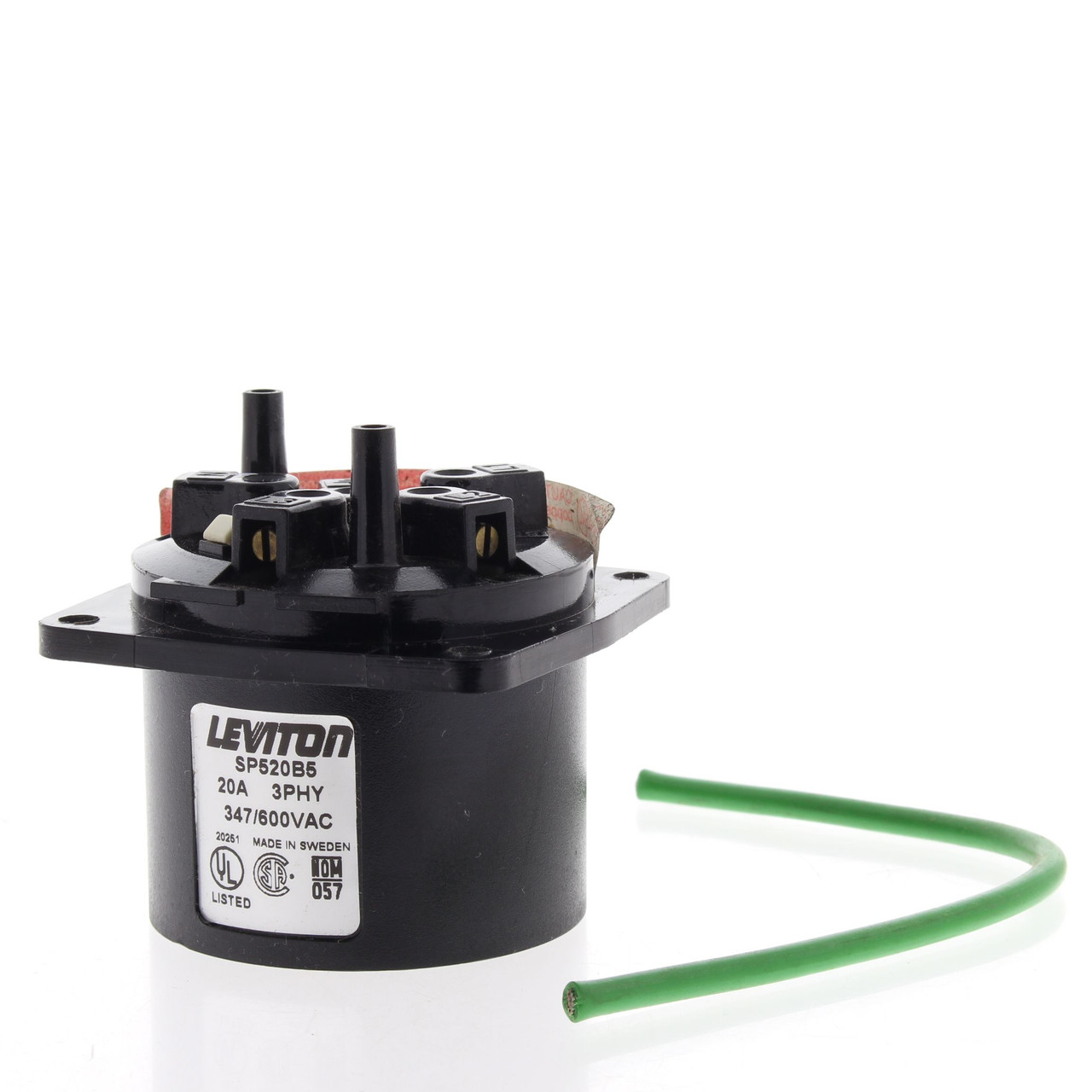

- Leviton Pin & Sleeve Splashproof Plug Inlet 20A 347/600VAC 3�Y SP520B5
QTY Available to Ship:
6
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description
Leviton SP520B5 splashproof pin & sleeve inlet plug. Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 20A 347/600VAC 3-phase Y. Features include:
- Rugged housing, made of superior performance Valox 357, provides maximum corrosion protection and makes the device resistant to impact and abuse; greater resistance to temperature extremes, V-0 flame rated and superior UV stability
- Contact carrier resists arcing and internal heat build-up
- Multiple contact points assure a continuously reliable electrical connection
- Clean brass pin construction resists corrosion, provides superior contact and low electrical resistance
- Pins are designed for manageable insertion/withdrawal force
- Rounded pin tips reduce insertion force and decrease wear on the contact surface area
- Solid brass terminal screws provide maximum clamping pressure
- Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front & back side
- Rated for both 50 and 60 Hz applications
MPN:
SP520B5
Cross Reference:
Not Available
Color:
Black
Amperage:
20A
Condition:
New
UPC:
078477845105
Weight:
2.00 LBS
