Hubbell Watertight Pin & Sleeve Reversed Service Connector 30A 600V HBL330CS2WR

Your Price: $169.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

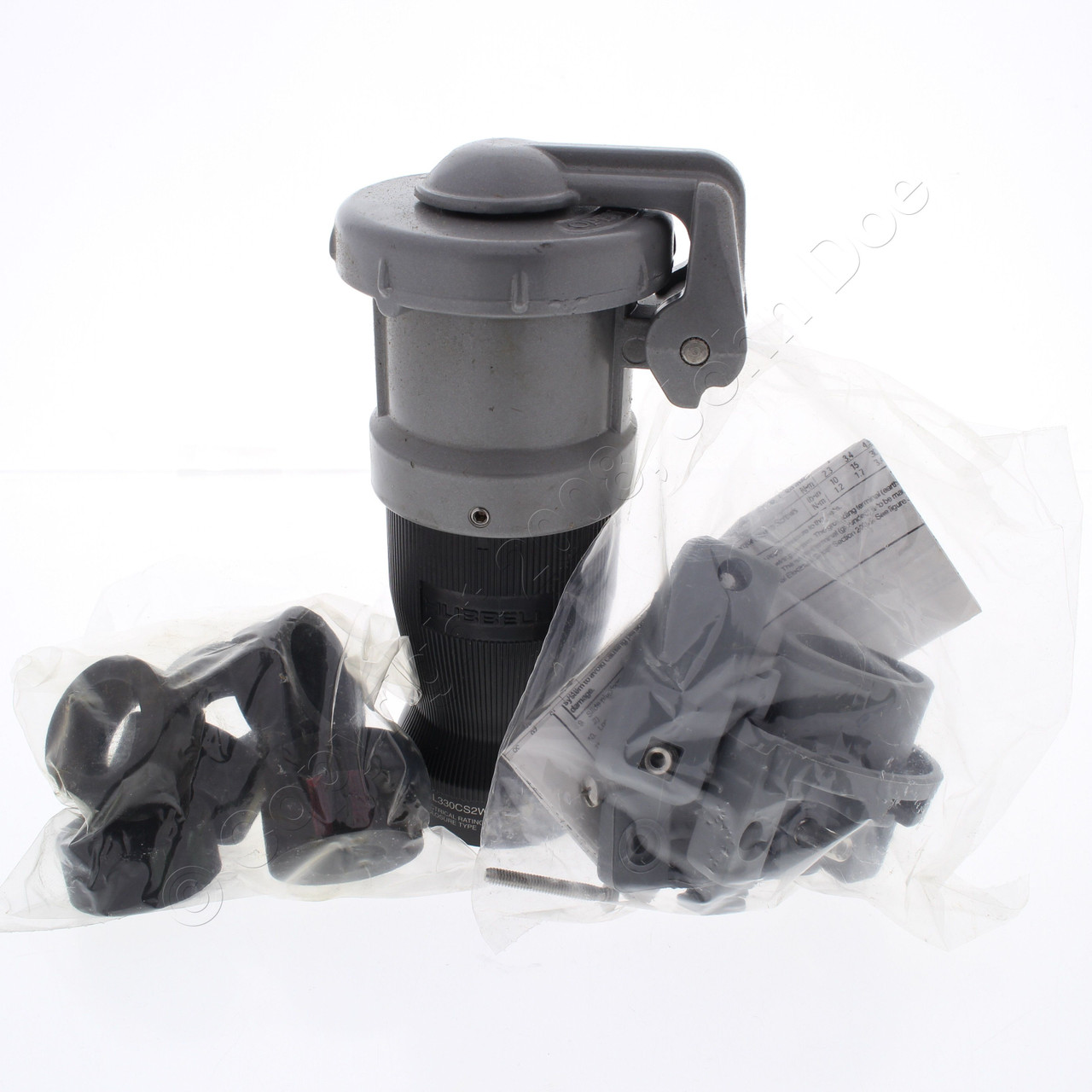

Hubbell HBL330CS2WR watertight pin and sleeve reversed service connector (Style 2 Insulgrip). Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 20A 600V. Each is individually packaged; packaging may differ from photo. Features include:

This is a reversed service connector (a plug inside a connector body)
External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
Self-closing gasketed cover, detents into position to fully close automatically
Sequential contact engagement: ground makes first and breaks last; neutral makes second and breaks second (to prevent a momentary over-voltage on components connected phase to neutral); and phase contacts make last and break first
Tapered bore entrance creates high compression forces on sealing gland, providing a watertight seal around cord. Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance,
Cord grip incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations. Captive barrel nuts ease assembly and allow higher tightening torque for maximum cord retention
Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environments

MPN:

HBL330CS2WR

Cross Reference:

Not Available

Color:

N/A

Amperage:

30A

Condition:

New

UPC:

783585012117

Weight:

2.00 LBS
