- Hubbell Watertight IEC Pin & Sleeve Receptacle Outlet 16A 200-250V 2P3W C316R6W
QTY Available to Ship:
69
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

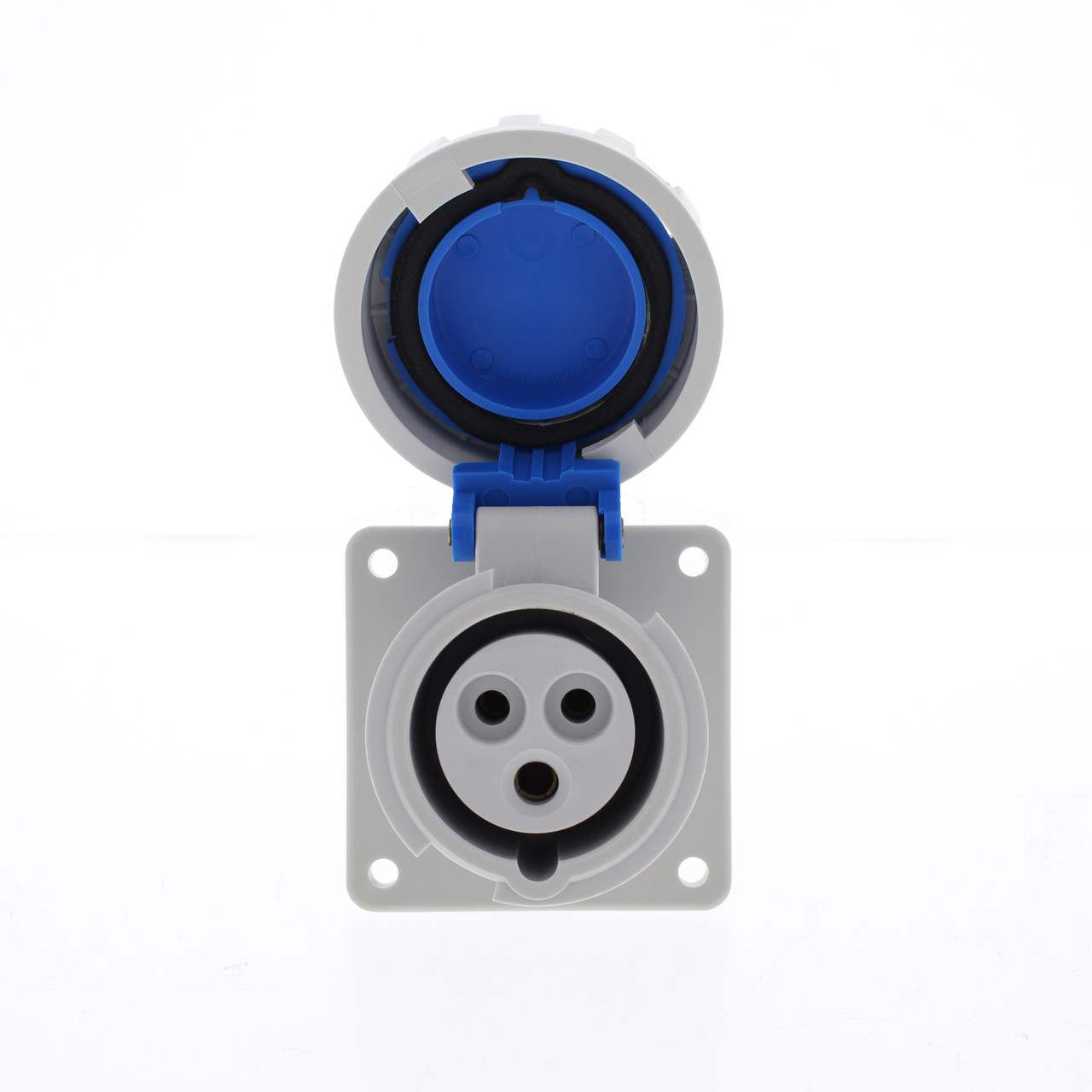

Hubbell C316R6W watertight pin and sleeve receptacle. The "C" prefix on this part number denotes Hubbell's C-IEC Series, an economy line of pin and sleeve devices for light-industrial applications. Commercial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 16A 200-250V. Each is individually packaged; packaging may differ from photo. Features include:
- External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
- Gasketed cover and locking ring - the self-closing cover sits in a position that provides a weatherproof seal. Simply rotating the cover then locking it makes it watertight
- Staggered contacts in female devices to assure protection of personnel and equipment. Oversized ground contact is farthest forward, assuring first make and last break of the ground for safety. Neutral contact is next to prevent the possibility of an “open neutral” condition that could result in an over-voltage condition at equipment. Phase contact is farthest back, making it last to make, first to break.
- Color coding - all devices are color coded by voltage for quick visual identification of mating devices.
Terminal identification - the ground and neutral terminals are clearly identified with large color coded markings for easy recognition.
MPN:
C316R6W
Cross Reference:
Not Available
Color:
N/A
Amperage:
16A
Condition:
New
UPC:
783585397023
Weight:
0.45 LBS
