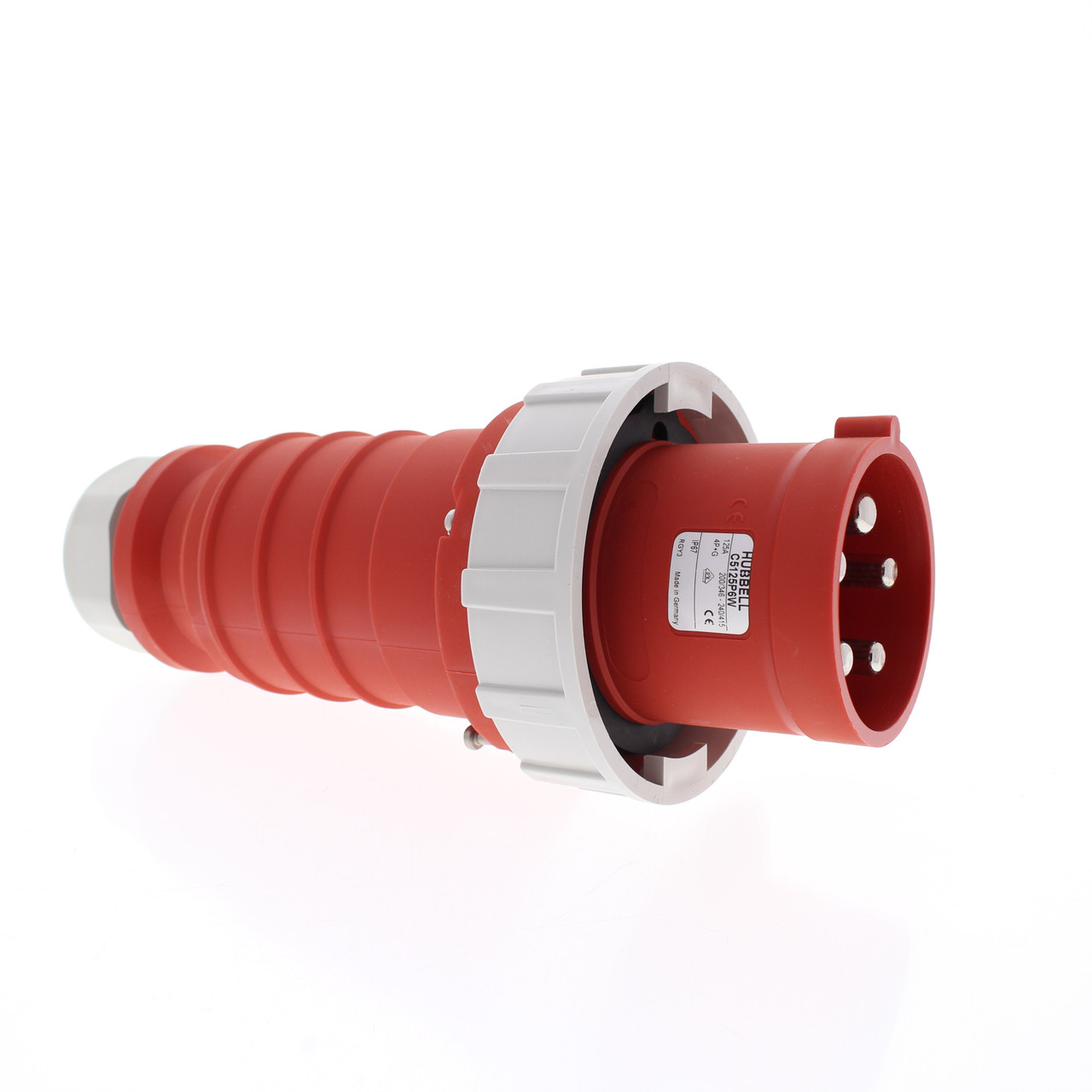

Hubbell Watertight IEC Pin & Sleeve Plug 125A 200/346V 240/415V 4P5W C5125P6W

Hubbell C5125P6W watertight pin and sleeve plug. The "C" prefix on this part number denotes Hubbell's C-IEC Series, an economy line of pin and sleeve devices for light-industrial applications. Manufactured for International electrical ratings (European); as a result, these are not UL Listed or CSA Certified. Commercial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 125A 200/346V 240/415V. Each is individually packaged; packaging may differ from photo. Features include:

• External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
• Cable grip - internal strain relief protects the wiring by preventing conductor movement which can cause strain on terminals. The internal cable grip is designed to swing out of the way for easier wiring
• Watertight multi-diameter sealing glands - for use with varying cable sizes insure a highly reliable seal at the cable entry to the device
• Dependable solid pin construction provides for long life and reliable electrical contact
• Insulated housing - tough nylon provides increased safety and maximum impact and abuse resistance.
• Shrouding protects pins from impact and abuse
• Color coding - all devices are color coded by voltage for quick visual identification of mating devices. Terminal identification - the ground and neutral terminals are clearly identified with large color coded markings for easy recognition.
