Hubbell Watertight IEC Pin & Sleeve Flanged Inlet Plug 100A 125V 2P3W HBL3100B4W

Your Price: $159.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

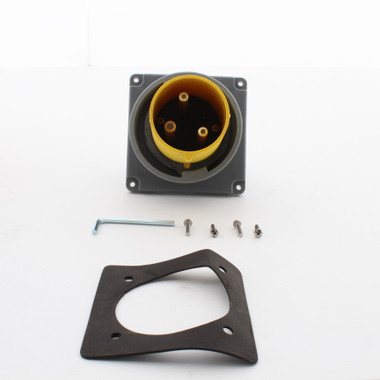

Hubbell HBL3100B4W pin and sleeve watertight flanged inlet. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 100A 125V. Each is individually packaged; packaging may differ from photo. Features include:

Solid one-piece pins machined from solid brass for longer life and reliable electrical contact
Raised contact collar surrounds each phase pin increasing the tracking resistance between contacts across the contact carrier face
Super tough plug shroud protects pins from deforming from physical abuse. Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
Thermoset polyester contact carrier - molded thermoset polyester provides high resistance to electrical tracking. Withstands higher temperatures which may result from overload or arcing. Thermoset properties provide dimensional stability for this critical assembly
Gasketed sealing ring provides watertight seal when mated with connector
Rugged one-piece housing - thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants. Amperage/voltage rating and catalog number molded in housing for easy identification

MPN:

HBL3100B4W

Cross Reference:

3100B4W

Color:

N/A

Amperage:

100A

Condition:

New

UPC:

783585403007

Weight:

2.95 LBS
