Product Description

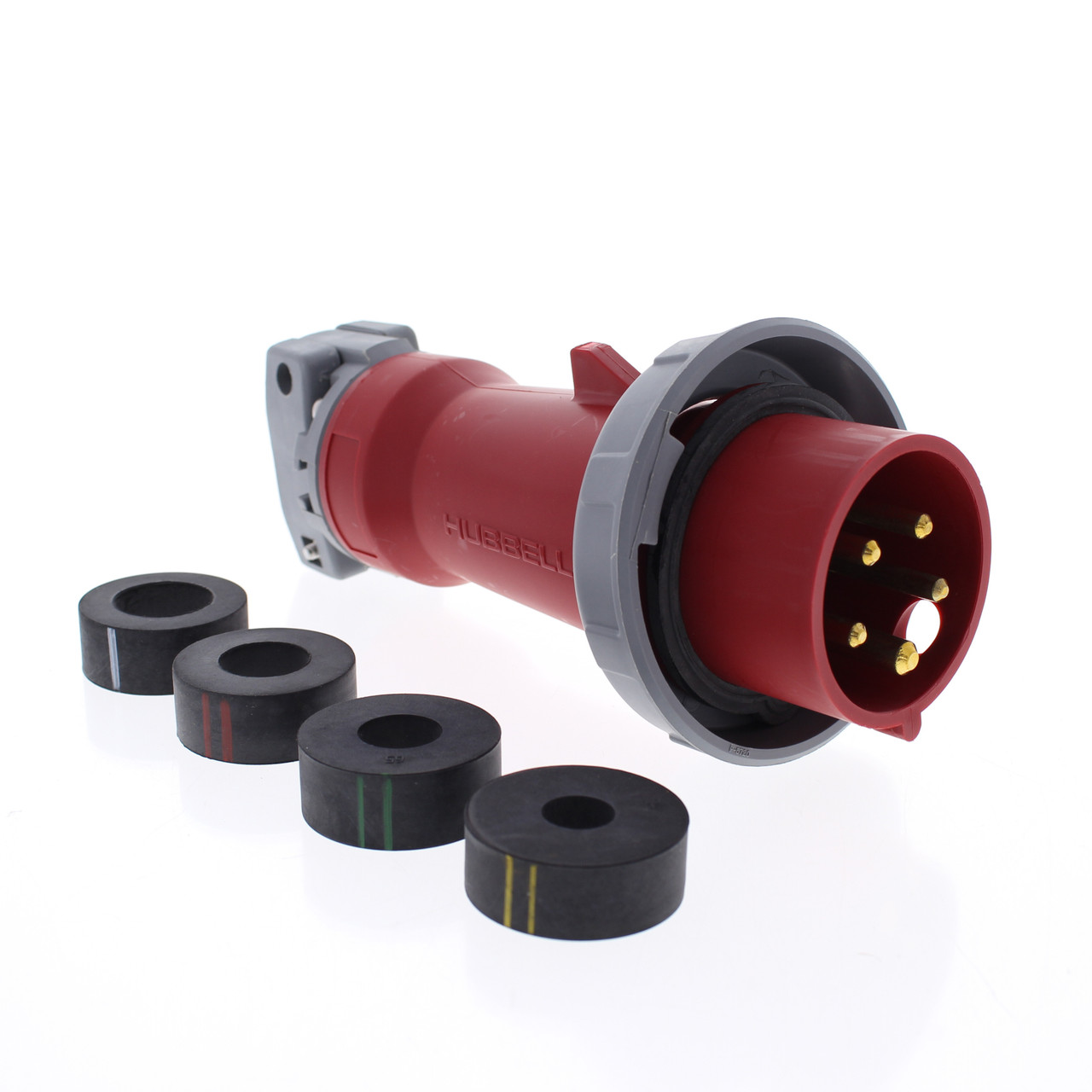

Hubbell HBL516P6W pin and sleeve watertight plug. Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 16A 220/380V 240/415V. Each is individually packaged; packaging may differ from photo. Features include:

Solid one-piece pins machined from solid brass for longer life and reliable electrical contact
Raised contact collar surrounds each phase pin increasing the tracking resistance between contacts across the contact carrier face
Super tough plug shroud protects pins from deforming from physical abuse. Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
Thermoset polyester contact carrier - molded thermoset polyester provides high resistance to electrical tracking. Withstands higher temperatures which may result from overload or arcing. Thermoset properties provide dimensional stability for this critical assembly
Gasketed sealing ring provides watertight seal when mated with receptacle or connector
Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
Lockout/tagout tapered opening on plug shroud accommodates up to 3/8 inch (9.7mm) lock shackle diameter
Rugged one-piece housing - thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants. Amperage/voltage rating and catalog number molded in housing for easy identification
Powerful mechanical cord grip - Hubbell’s design incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations. Captive barrel nuts ease assembly and allow higher tightening torque for maximum cord retention
Watertight cord entrance - tapered bore entrance creates high compression forces on sealing gland, providing a watertight seal around cord. Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance
Pocketed recessed screws prevent slippage of the screwdriver

MPN:

HBL516P6W

Cross Reference:

Not Available

Color:

Red

Amperage:

16A

Condition:

New

UPC:

783585405223

Weight:

1.30 LBS
