Cooper Broken Handle Pin & Sleeve Watertight 3Ø Interlock Power Switch 60A 480V

Your Price: $269.00
SKU:
CWDCW460MI7W-EA-SDB

*Same Day Shipping

QTY Available to Ship:
1

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

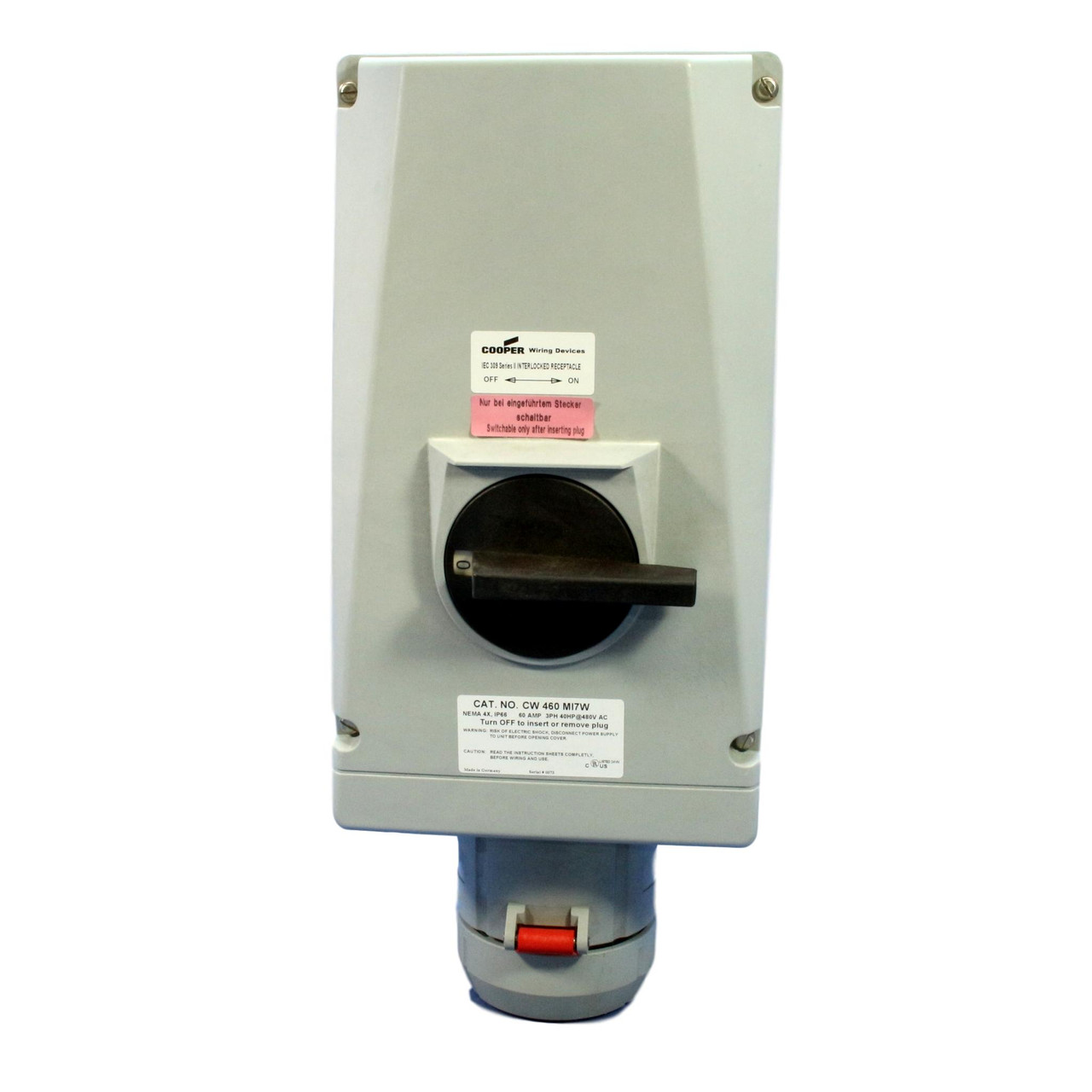

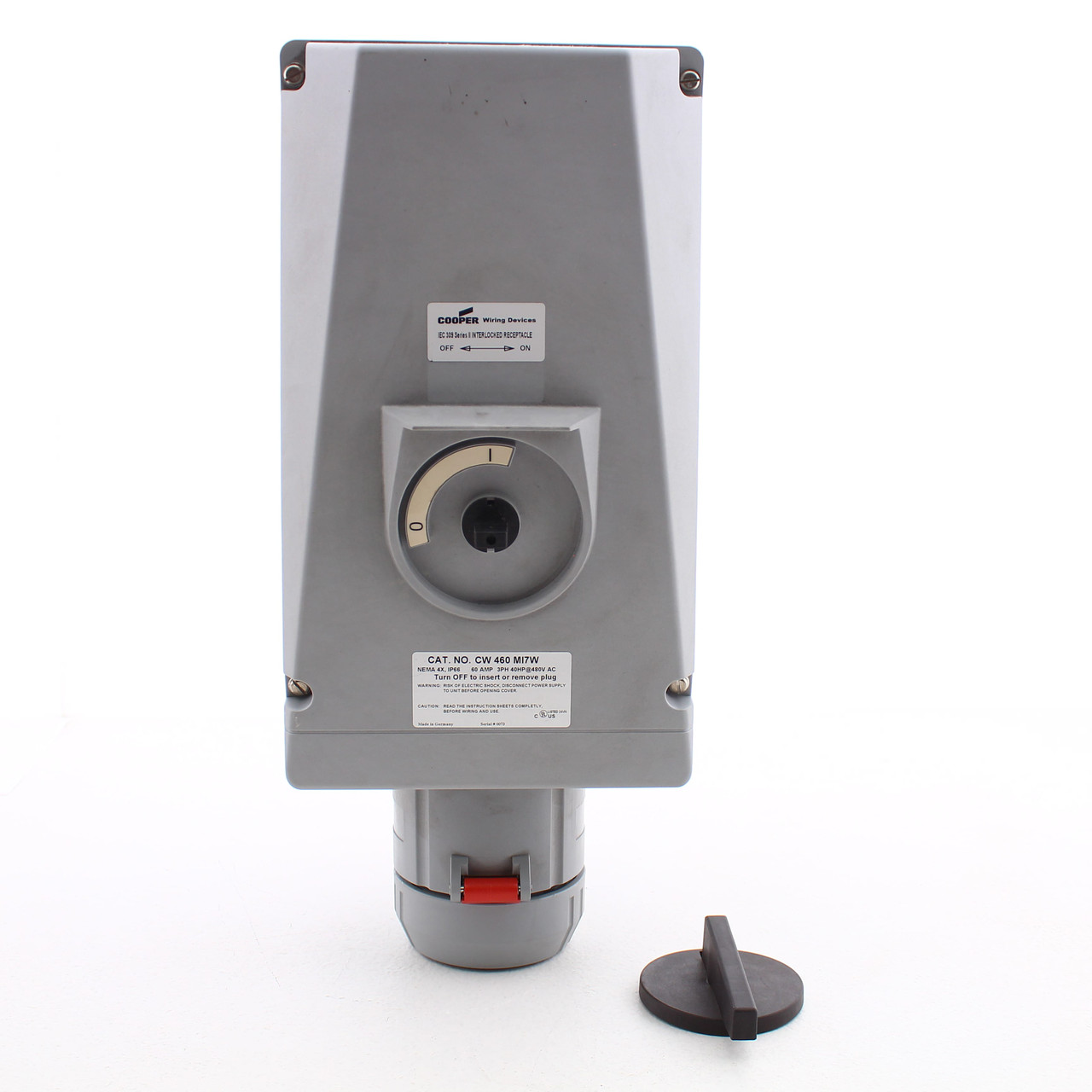

Cooper CW460MI7W watertight pin & sleeve non-fused mechanical interlock. Please note this interlock does not have a handle as it was broken upon arrival. Incorporates a disconnect safety switch and IEC receptacle in a non-metallic watertight enclosure. The interlock mechanism prevents making and breaking of power under load. The switch cannot be actuated to the ON position until an IEC compatible plug is fully inserted, and the plug cannot be removed until the switch is in the OFF position. IEC 309, 3-pole, 4-wire, grounding, rated 60A 480V 3-Phase. Features include:
  • Does not include Red pistol grip handle
  • Integrated lockout handle
  • Pre-wired grounding plate connects to metal conduit grounding system
  • Liquid-tight conduit fitting can be installed for top or bottom feed; (1) 1-1/4" conduit fitting supplied
  • Factory installed auxiliary contact - normally open 10A
  • Color-coded receptacle cover indicates voltage rating of device and seals against water and other contaminants when not in use
  • Rugged hinge mechanism pivots 180° for easy access during installation and maintenance
  • Stainless steel screws are captive and will not fall out when cover is opened
  • Brass threaded inserts will not strip, provide higher torque, and form tighter seal between back box and cover
  • Impact, UV and chemical-resistant Valox enclosure
  • Generous wiring space for drip loop or top to bottom wiring
  • Circuit identification pad for means of identifying specific equipment loads

MPN:
CW460MI7W
Cross Reference:
Not Available
Color:
Gray
Amperage:
60A

Condition:
New
UPC:
040893674186
Weight:
14.90 LBS
