Bryant Watertight Pin & Sleeve Mechnical Interlock 100A 600V 3� 3P4W 4100SMI5W

Your Price: $749.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

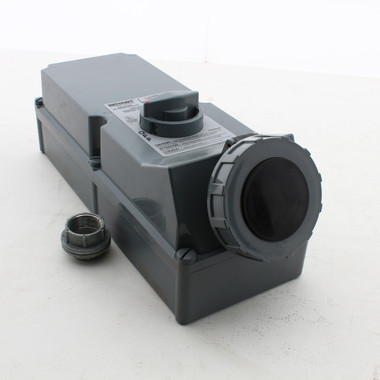

Bryant 4100SMI5W watertight pin and sleeve unfused mechanical interlock. Industrial grade, IEC 309, 3-pole, 4-wire, grounding, rated 100A 600VAC. Mechanical Interlocks combine the safety of a disconnect switch and IEC pin and sleeve receptacle in one compact nonmetallic enclosure and provide ON/OFF switched control of a plug connected load. Interlocking feature prevents the plug from being disconnected while the receptacle is energized. The switch cannot be turned ON until plug is properly inserted. Plug can not be removed until the switch is turned OFF. Features include:

Unfused
NEMA 4X and 12 enclosures provide watertight and dust-tight protection
Heavy duty disconnect switches are horse-power rated for motor load applications
Impact, corrosion-resistant thermoplastic enclosure
Handle can be padlocked to comply with OSHA lockout/tagout requirements
Heavy-duty disconnect switches are horsepower rated for motor load applications
Top feed
Watertight receptacle cover opens from front of receptacle. Reduces potential for accumulation of dust and moisture inside cover
Color-coded receptacle cover insert provides voltage rating identification

MPN:

4100SMI5W

Cross Reference:

Not Available

Color:

N/A

Amperage:

100A

Condition:

New

UPC:

781786055445

Weight:

12.50 LBS
