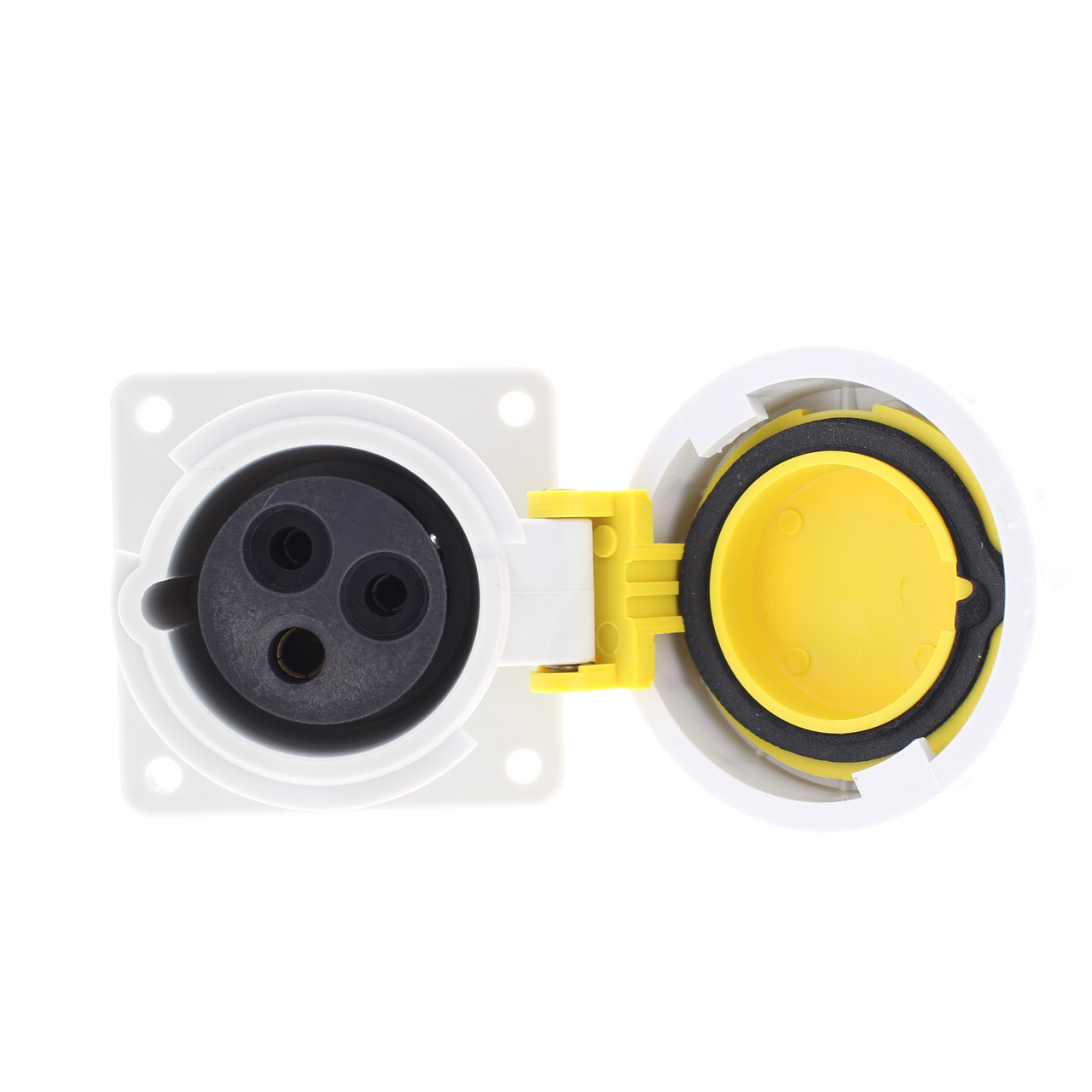

Bryant Watertight IEC Pin & Sleeve Receptacle 20A 125V Female Outlet 2P3W 320R4W

Your Price: $59.99
QTY Available to Ship:
33

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Bryant 320R4W watertight pin and sleeve receptacle. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 20A 125V AC. Each is individually packaged; packaging may differ from photo. Features include:
  • External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
  • Spring-loaded gasketed cover
  • Self-adjusting contacts provide accurate pin insertion, producing self-cleaning effect as pin is inserted and withdrawn from sleeve
  • High temperature contact carrier Phase contacts are recessed in deep insulated chambers to minimize arcing
  • Ground contact in forward position ensures first make, last break, neutral contact connects next, then phase contacts
  • Terminal screws are backed out for easy assembly

MPN:
320R4W
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A

Condition:
New
UPC:
781786250352
Weight:
0.80 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
