Bryant Watertight IEC Pin & Sleeve Connector Female Plug 60A 480V 3� 3P4W 460C7W

Your Price: $219.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

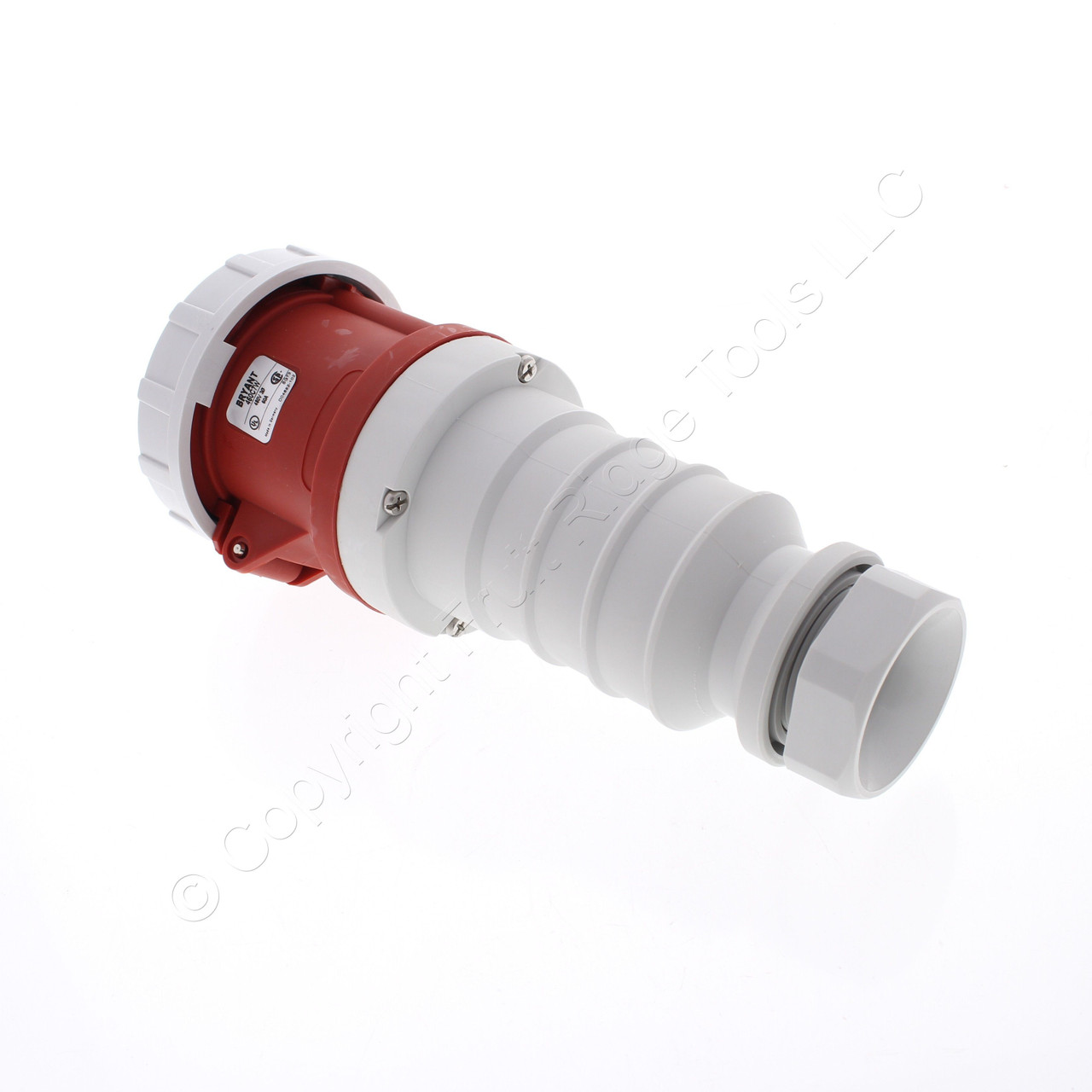

Bryant 460C7W watertight pin and sleeve connector (Bryant is a division of Hubbell). Industrial Grade, IEC 309, 3-pole, 4-wire, grounding, rated 60A 480V 3 Phase. Each is individually packaged; packaging may differ from photo. Features include:

External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
Spring-loaded gasketed cover
Self-adjusting contacts provide accurate pin insertion, producing self-cleaning effect as pin is inserted and withdrawn from sleeve
High temperature contact carrier
Radial rib exterior
Phase contacts are recessed in deep insulated chambers to minimize arcing
Ground contact in forward position ensures first make, last break, neutral contact connects next, then phase contacts
Terminal screws are backed out for easy assembly

MPN:

460C7W

Cross Reference:

Not Available

Color:

N/A

Amperage:

60A

Condition:

New

UPC:

781786251427

Weight:

1.90 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
