Bryant Splashproof Male IEC Pin & Sleeve Plug 32A 200/346V 240/415V 4P5W 532P6S

Your Price: $64.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

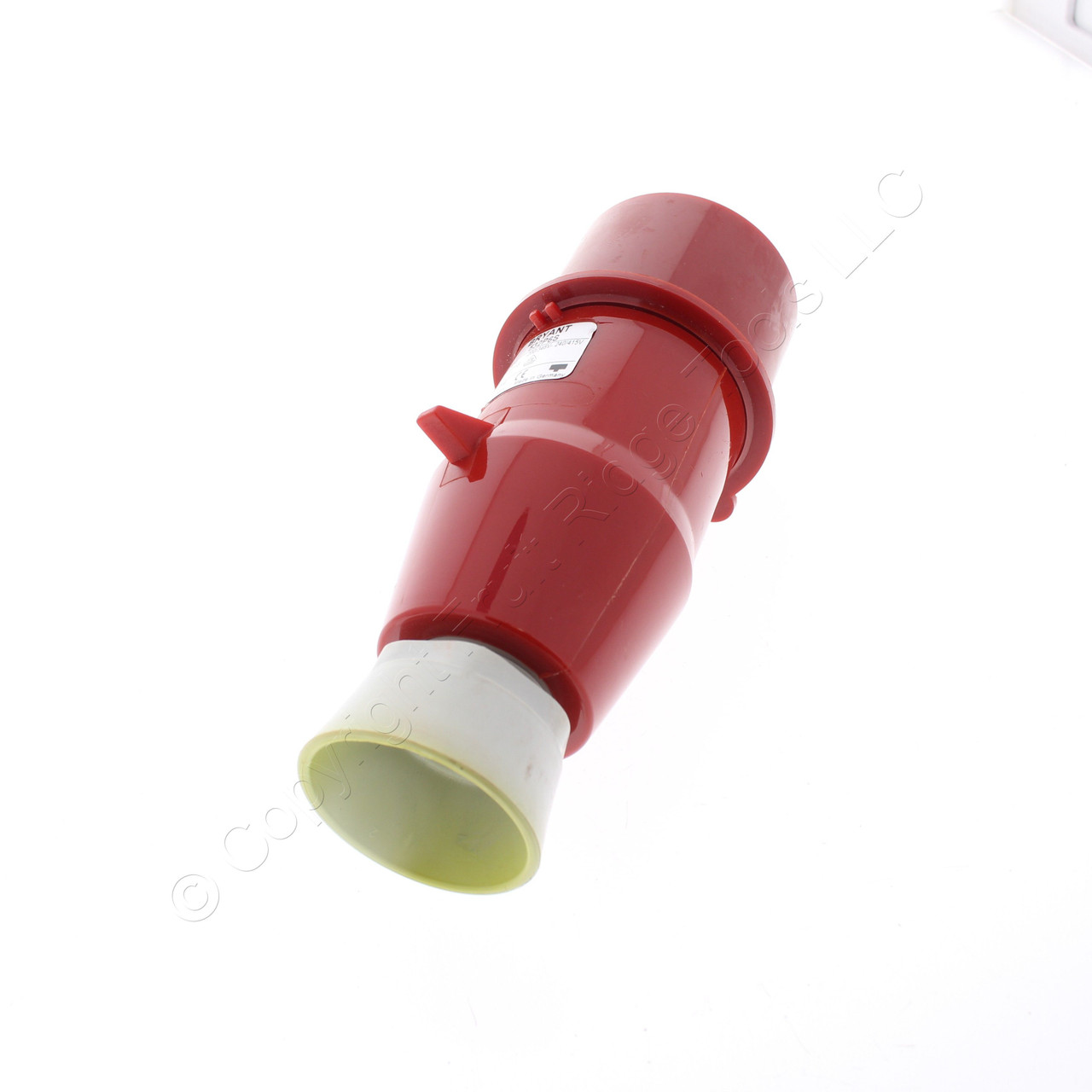

Bryant 532P6S splashproof pin and sleeve plug (Bryant is a division of Hubbell). Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 32A 200/346V and 240/415V. Each is individually packaged; packaging may differ from photo. Features of Bryant's pin and sleeve plugs and connectors include:

Singly-rated, non-interchangeable configurations in accordance with IEC 309-1 and 309-2 standards. Prevents mismating of devices with different voltage ratings. Color coded for easy identification
Self-adjusting, slotted contact sleeve and nickel-plated spring steel contact pressure spring ease insertion of pins and provide consistent contact pressure
Pins are recessed in shrouded housing for protection from abuse
Pins and sleeves are fabricated from solid brass for longevity, contact reliability, and superior conductivity
Ground contact in forward position to ensure first make, last break. Neutral contact connects next, then phase contacts
Neoprene sealing glands seal out moisture and contaminants at cord entry and can accommodate a variety of cord diameters
Cord clamp screws fasten into threaded, plated steel nuts to prevent strip-out
Gland nut and ring compress sealing gland around cord to seal out contaminants. Provides supplemental strain relief
Insulated nylon housing resists impact, corrosion, and chemical attack
IP44 moisure resistance rating
Combination straight/Phillips head cord grip, terminal and assembly screws, and single side terminals simplify wiring
Manufactured for International Power Ratings (European); as a result they are not UL Listed or CSA Certified

MPN:

532P6S

Cross Reference:

Not Available

Color:

N/A

Amperage:

32A

Condition:

New

UPC:

781786251915

Weight:

0.65 LBS
