- Eaton Auxiliary Switch and Alarm Switch Combination for F-Frame Breaker AAL1LPK
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

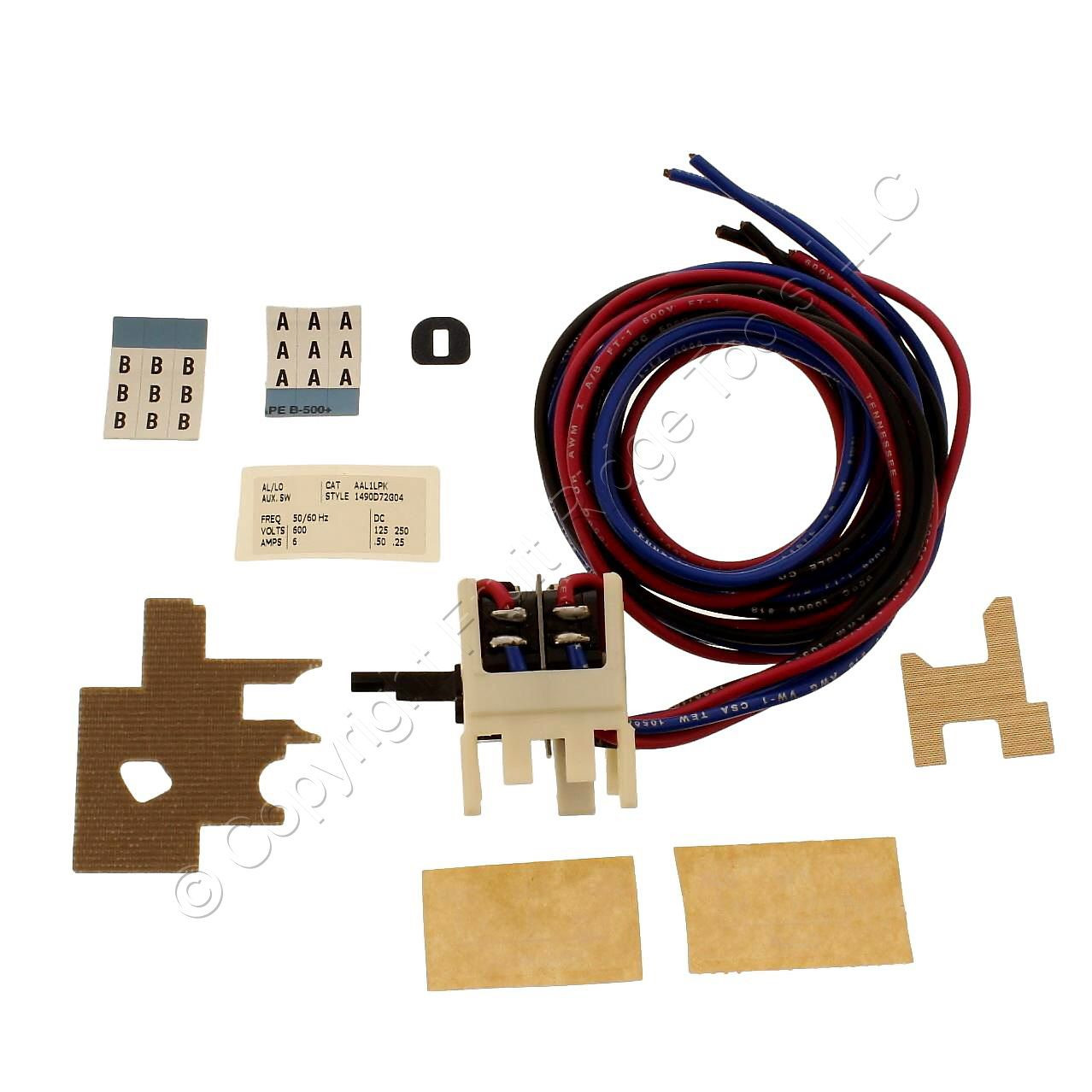

Eaton AAL1LPK combination auxiliary switch and alarm switch with pigtail leads for use as a molded circuit breaker accessory. Left-pole mounting, for F-frame breaker. Contact: 3a, 3b, and 1 Make, 1 Break. Not for use on 4-pole circuit breakers. Features include:
- Alarm switch - For remote indication of automatic trip operation. Does not function with manual switching; however, it will operate when either a shunt trip or undervoltage release is operated. A “make” contact closes and a “break” contact opens when the alarm/lockout switch operates. The switch automatically resets when the circuit breaker is reset
- Auxialiary Switch - The auxiliary switch provides circuit breaker contact status information by monitoring the position of the molded cross bar that contains the moving contact arms. The auxiliary switch is used for remote indication and interlock system verification, and consists of one or two SPDT switches housed in a plug-in module. Each SPDT switch has one “a” and one “b” contact. When the circuit breaker contacts are open, the “a” contact is open and the “b” contact is closed.
- Auxiliary Switch and Alarm Switch Combination - In an auxiliary switch ASL switch combination, the auxiliary switch is always mounted on the side of the plug-in module next to the center pole of the circuit breaker.
MPN:
AAL1LPK
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
00786679762820
Weight:
0.40 LBS
