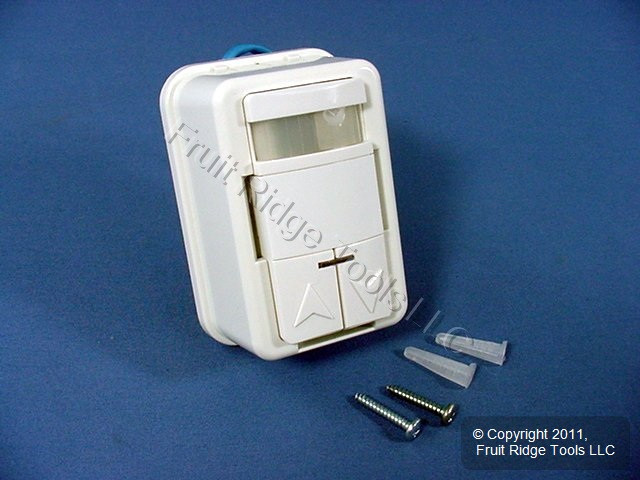

Leviton Lonworks White Occupancy Motion Sensor Dimmer Switch Surface Mount Surface Mount L979-T

Leviton Decora L979-T white flush mount Lonworks passive infared occupancy sensor dimmer switch. To be used in conjunction with a Leviton L206-CT or L720-CT control unit. Designed to turn lights on when motion is detected and to turn them off a preselected period of time after motion has ceased. Commercial Grade with all of the features that you need for optimal light control: ambient light sensor, manual override, and adjustable time delay. Features include:

• Two push-button configuration allows manual dimming or override of occupancy sensor - network configurable to be dimmer or switch
• Turns lights on when motion is detected and turns them off a preset time after it ceases
• Time-out control - adjustable over network
• Sensitivity control - adjustable over network
• Ambient light setting to avoid activating lights when they are not required
• Commercial Specification Grade: 11-24VDC operating voltage
• 180 to 32 degree field of view, 60' width, and 38' range.
• Requires a Leviton L206-CT or L720-CT control unit or compatible equivalent (sold separately) - will not function without at least one in the network circuit
• For single pole and multi-location applications
• Network output variables: node object status output, device override switch value output, override-on switch value output, occupancy state output, occupancy sensor numerical output, light level output, switch value output, and preferred switch value output
• Network input variables: node object mode input, device override switch feedback value, field-of-view adjustment, switch feedback input, and device mode
• Network configuration variables: location label, maximum send time for network output, hold time for occupied state, reflection factor, field calibration, and min. change before nvo02LuxLevel updates
