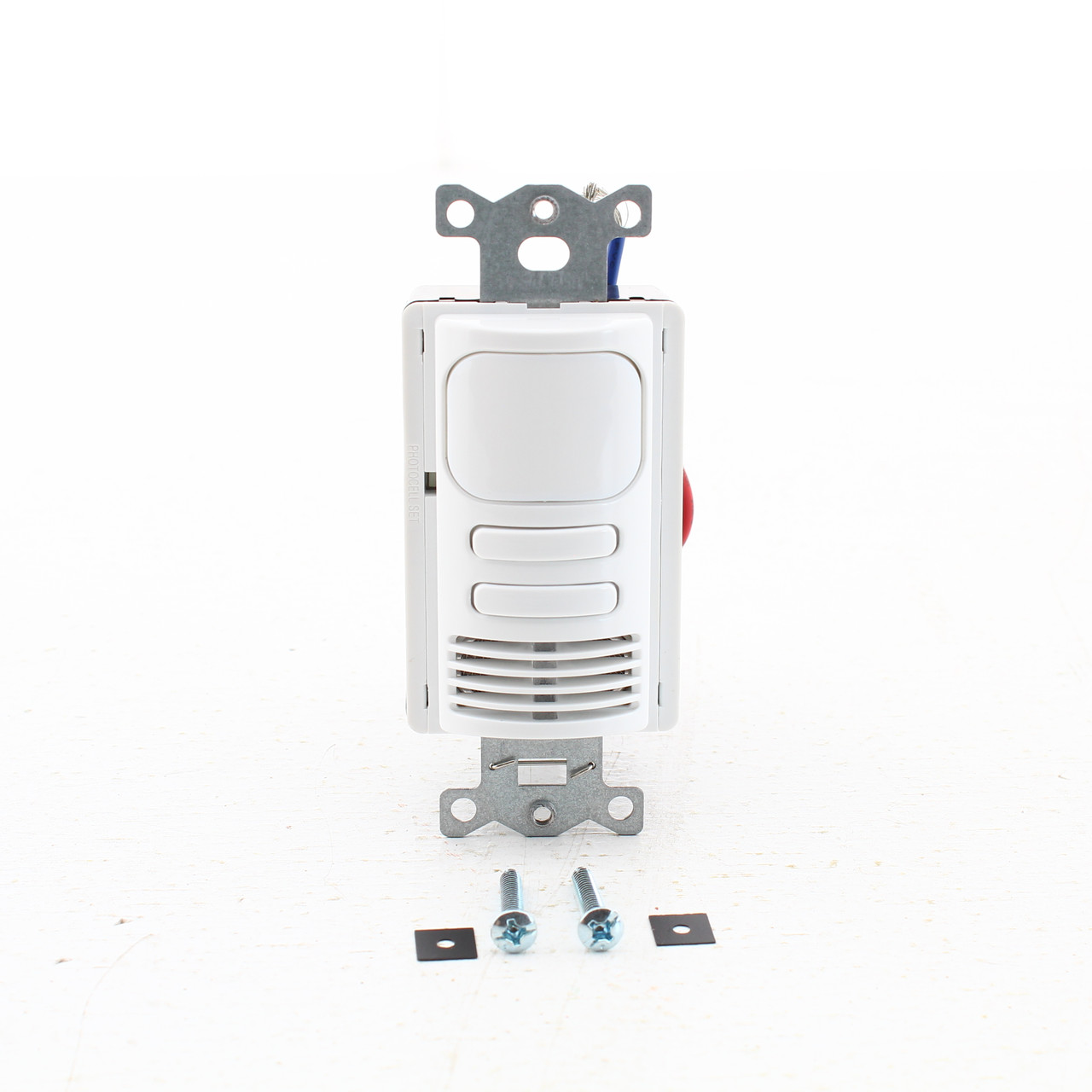

Hubbell White Occupancy Sensor Switch Adaptive PIR/US 2Circuit 120/277V AD2000W2

Hubbell AD2000W2 white 2-circuit occupancy sensor switch. Dual relay sensor allows control of 2 load circuits. Typical uses include: controlling lights and a fan with different time off delay settings; or controlling a larger room with two banks of lighting (border/mood and center/task lighting) that require different time off delay settings. Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor’s sensitivity and timer settings to optimize performance based on occupancy patterns. The sensor constantly learns and adjusts appropriately. Features include:

• No neutral required
• Single pole
• Vacancy mode option - can be set to turn on automatically when motion is detected or to turn on only when the manual ON/OFF switch is pressed
• Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor's sensitivity and timer settings to optimize performance based on occupancy patterns.
• Manual or adaptive time delay - the amount of time that the switch will keep the lights on after motion is no longer detected can be set manually (4-30 minutes) or automatically using the built-in Intelli-DAPT technology
• Coverage: 1,000 square feet
• Load ratings: 5A LED; 800W incandescent @ 120V; 1000W fluorescent @ 120V; 1800W fluorescent @ 277V; 1/6 HP @ 120/277V
• Dual tech sensor - combines the individual advantages of passive infrared and ultrasonic detection. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights ON
• Built in photocell with manual super saver mode for daylight harvesting - assures that lights are only on while ambient light levels require it; range can be set to 10-500 foot candles
• Impact resistant hard lens is standard and color matched to the switch
• Fits standard decorator/GFCI style wallplates (purchased separately)
