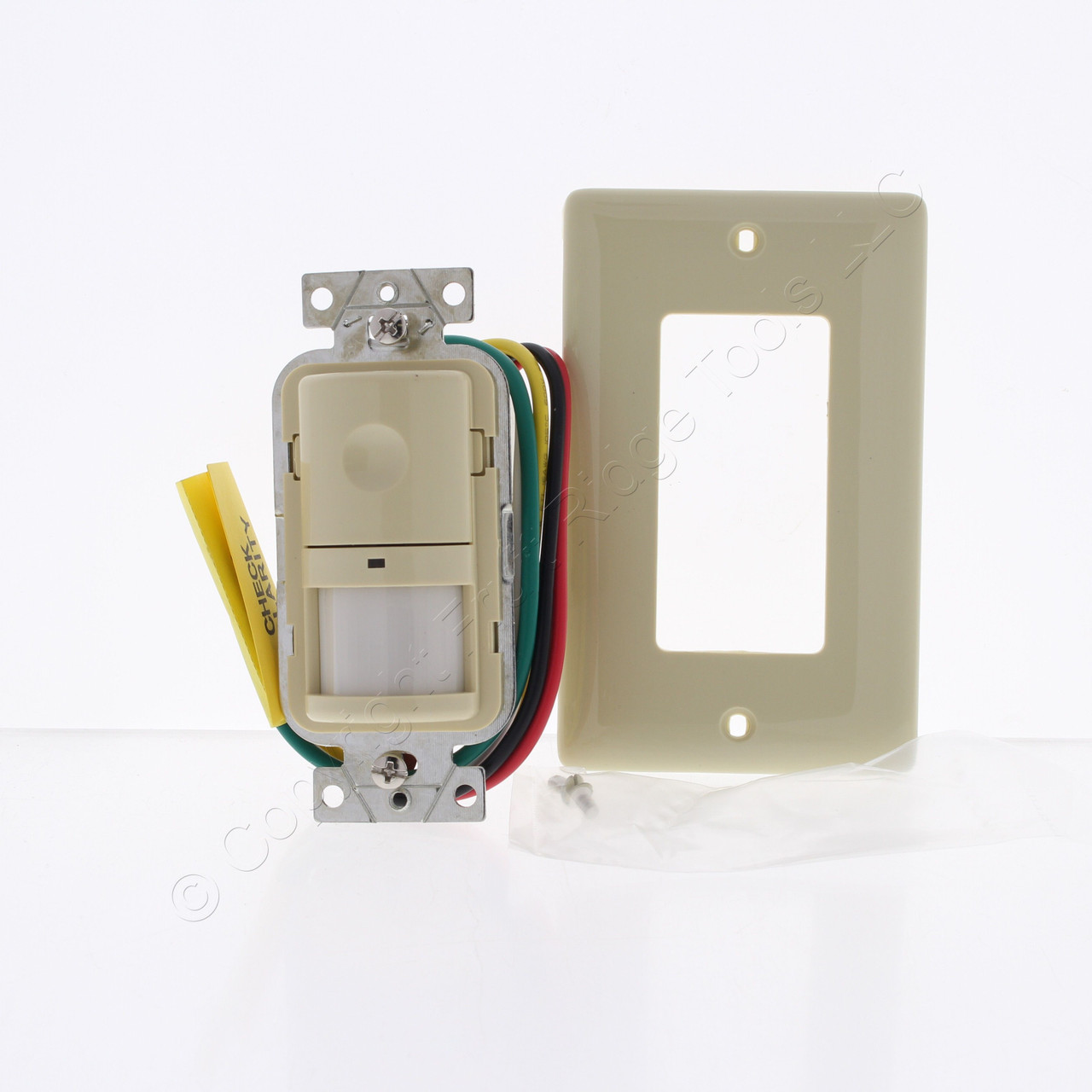

Bryant Ivory Occupancy Sensor Switch 120/277V LED/CFL/INC 180� 1000W MS2004NI

Bryant/Hubbell MS2004NI ivory passive infrared occupancy sensor switch (Bryant is a division of Hubbell). Requires a clear, unobstructed line of sight for detection because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones; movement across zones is interpreted as occupancy. Excellent for small room control. Features include:

• Neutral wire is required (this allows it to work with LED and CFL bulbs); check your electrical box before ordering
• Works with LED and CFL bulbs
• Automatically turns lights on when motion is sensed; can also be turned on manually with push button at front
• 3-way capable
• Manual adjustment time delay (20 sec. to 30 min.)
• Nightlight to provide minimum illumination when the lights are off
• Designed for use on 120V AC or 277V AC circuits, no neutral needed for fast retrofits
• Heavy duty relay controls up to 1000 watts at 120V AC or 1800 watts at 277V AC
• Front press switch allows the occupant to switch the sensor from automatic operation to momentary OFF mode
• Photocell can prevent lights from turning ON with sufficient natural light
• High density 1200 square foot 180 degree coverage with tough tamper-resistant lens
• Steel mounting strap
• Tamper-resistant push button covers the time-out, service switch, vacancy and occupancy operation mode settings
