- Bryant Non-NEMA Locking Receptacle 20A 120/208V 3PHY 4" Round Metal Box Cover
QTY Available to Ship:
3
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description

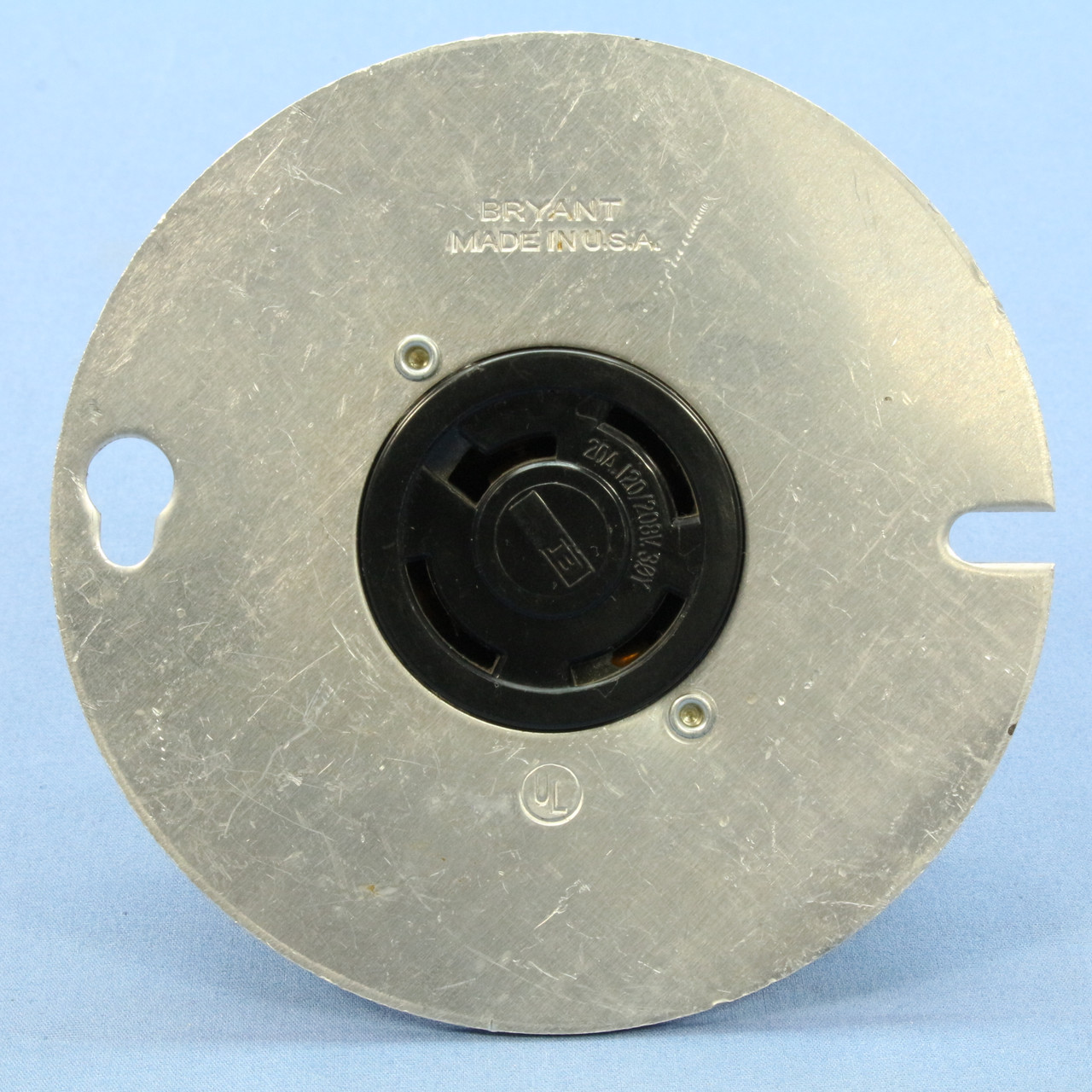

Bryant 7417 twist turn locking receptacle with plate. It is Tech-Spec Industrial Grade, non-NEMA, 4-pole, 4-wire, non-grounding, 20A 120/208V 3PH Y. Metal plate is 4" with mounting holes. Bulk packed loose with no individual packaging. Features include:
- One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- Thick wall construction provides terminal isolation and strong support for current-carrying parts
- Base is molded of rugged reinforced thermoplastic polyester to minimize heat buildup and resist breakage
- Heavy-duty mounting straps are nickel-plated to resist corrosion. Wide width design assures secure assembly
- Rating is molded into face for easy identification
- Face is molded of high-impact nylon to resist breakage
- Space-saving design allows more room in box for wiring
- Both mounting straps are grounded for safe installation
- Captive, combination Phillips/slotted mounting screws
- High strength #10 bronze terminal screws resist corrosion and provide secure terminations
- Captive terminal screws are deep slotted for easy installations
- Combination back and side wiring terminals accept #14 thru #8 AWG solid or stranded copper conductors
MPN:
7417
Cross Reference:
Not Available
Color:
Black
Amperage:
20A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
0.30 LBS
