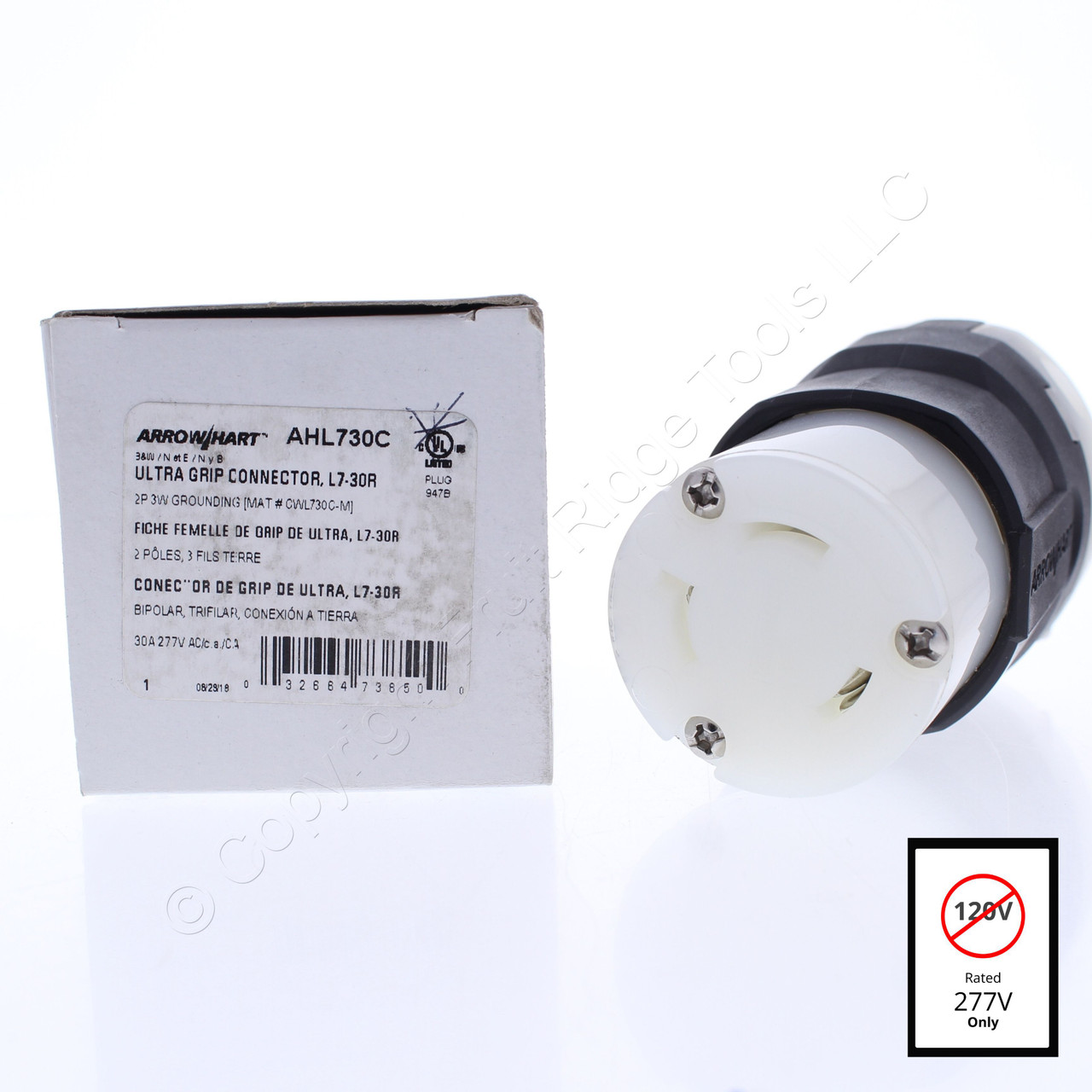

Eaton Arrow Hart Twist Turn Locking Connector Plug NEMA L7-30R 30A 277V AHL730C

Your Price: $17.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Eaton Arrow Hart AHL730C locking connector. Industrial Specification Grade, NEMA L7-30R, 2-pole, 3-wire, grounding, rated 30A 277V. Cord capacity: 0.38"-1.16". Each is individually packaged; packaging may differ from photo. Features include:

High-strength nylon construction stands up to severe job site abuse
EPDM gasket seals cord hole from dust and debris
Rating printed on side of device
Heavy-duty safety grip external cord grip with fast-driving screws provides positive cord gripping and limits strain on conductors
Back wire terminal clamps for easy secure wiring
Clear terminal chambers allow visual inspection of terminals
Individual wiring compartments with tapered channel for easy insertion of wires
Large, deep-slotted captive brass terminal screws
Largest-in-class grommet size allows for entire cord size range

MPN:

AHL730C

Cross Reference:

Not Available

Color:

N/A

Amperage:

30A

Condition:

New

UPC:

032664738500

Weight:

0.45 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
