- New Arrow Hart Gray Twist Turn Locking Flanged Outlet NEMA L6-30R 30A 250V 6346
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
){kind=icon}
Product Description

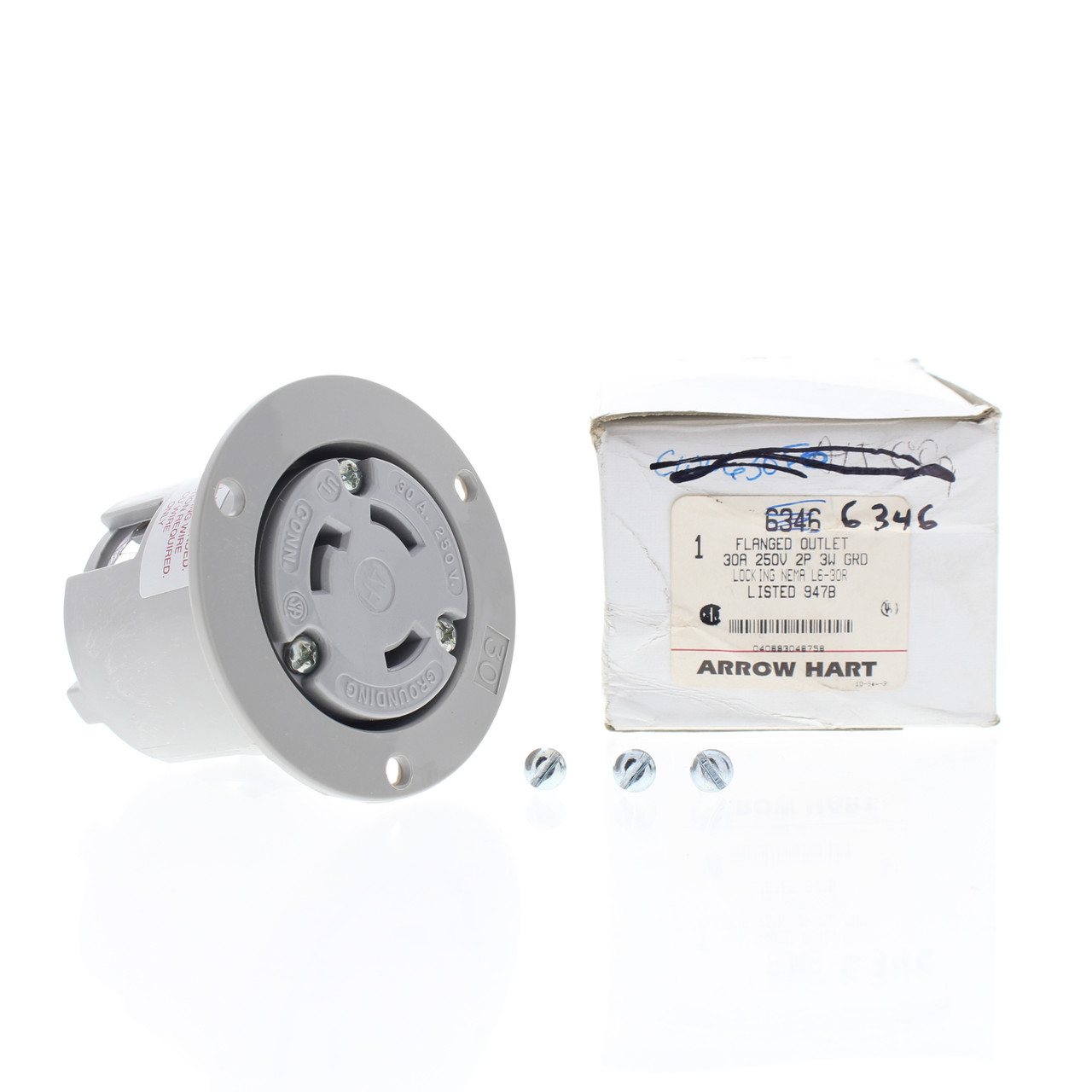

Arrow Hart 6346 gray locking flanged outlet. Industrial Specification Grade, NEMA L6-30R, 2-pole, 3-wire, grounding, rated 30A 250V. Terminals accommodate #18-#10 AWG. Features include:
- One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
- Cleat on contacts cuts oxidation when plug blade enters contact surface
- Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
- Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
- Transparent wiring chambers provide a means of visual inspection of conductors and terminals
- Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
- Color-coded terminal screws
- Molded-in strip gage provides correct measurement for proper strip length of conductor
- Captive terminal screws eliminate nuisance dropping and searching for missing screws
- Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
- Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
- Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
- NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
MPN:
6346
Cross Reference:
Not Available
Color:
Gray
Amperage:
30A
Condition:
New
UPC:
048930427580
Weight:
0.40 LBS
