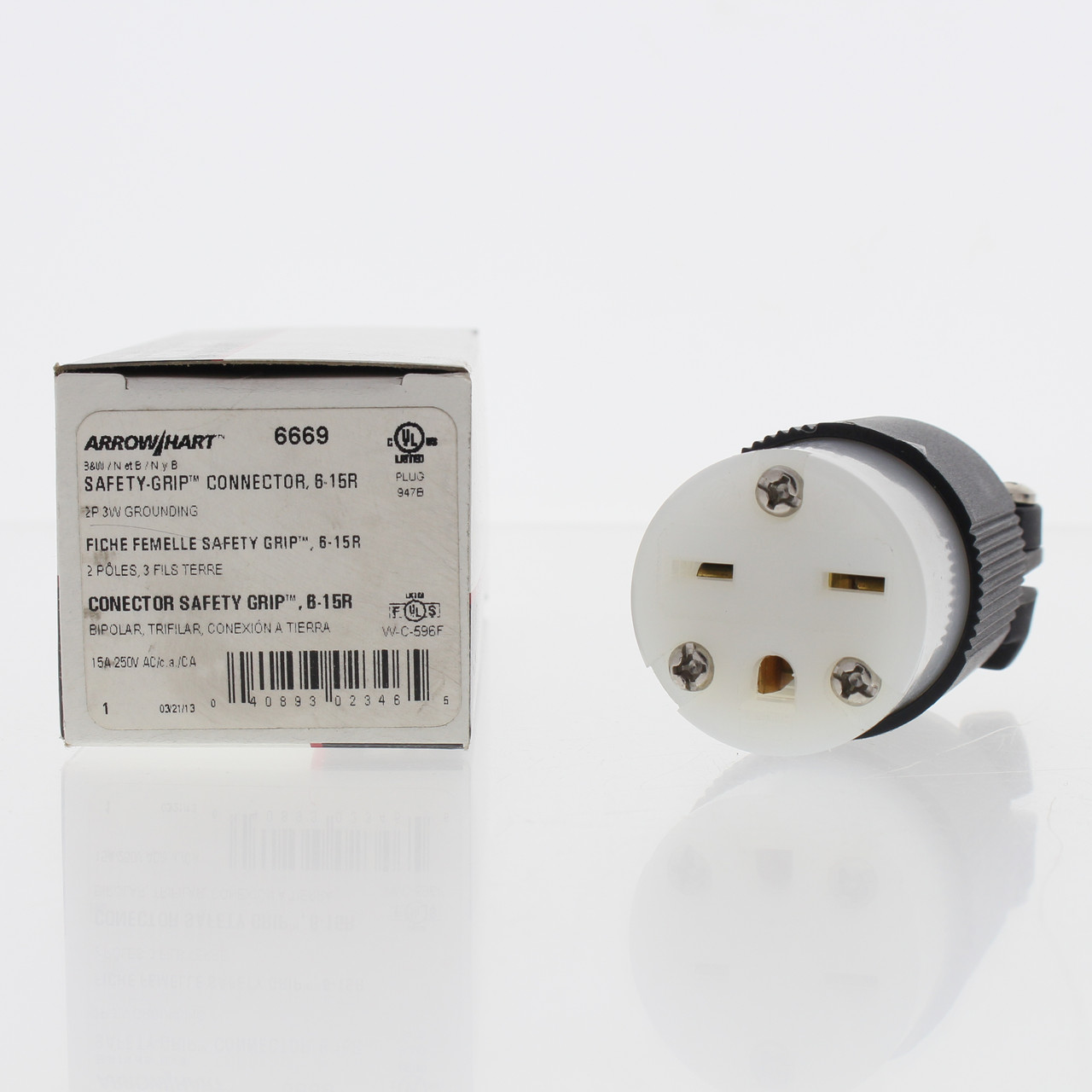

Cooper Straight Blade Safety Grip Nylon Dead-Front Plug Connector NEMA 6-15R 15A 250V 6669

Your Price: $5.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Cooper 6669 straight blade connector. Made to resist impact, punishing application environments, chemicals and sunlight, resulting in superior performance and long-lasting reliability. Industrial Specification Grade, NEMA 6-15R, 2-pole, 3-wire, grounding, rated 15A 250V. Each is individually packaged; packaging may differ from photos. Features include:

All-nylon dead front. Heavy, solid brass blades held tightly in individual module configurations
Individual deep-funnelled rectangular-shaped chamfered wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
Wire clamps move in individual chamber - provide positive crimp lock without cutting wire strand
Captive, color-coded brass #8 terminal screws
Cord clamp does not have to be disassembled from body for wiring - easy to tighten and no lost screws to find. Accepts all wire mesh strain reliefs
Cord clamp seats flush with body for all cables rated from 10-3 ST to 18-3 SVT (.250" -.656")
Clamp prevents damage to jacket on any cable used within rated range
Husk is constructed of ST801 Super Tough Nylon for superior impact resistance in rugged environments
Wiring module keyed to body for easy assembly and a tight fit
Three fast-threading screws secure wiring module to body - combination Phillips and straight blade screws
Beveled back edges prevent body from catching on corners and rough surfaces
Complete-containment design insulates non-current carrying parts
Fluted body design provides a sure grip
NEMA configuration and Cat. No. printed on cord clamp; NEMA configuration and rating molded on front

MPN:

6669

Cross Reference:

Not Available

Color:

Black & White

Amperage:

20A

Condition:

New

UPC:

040893023465

Weight:

0.20 LBS
