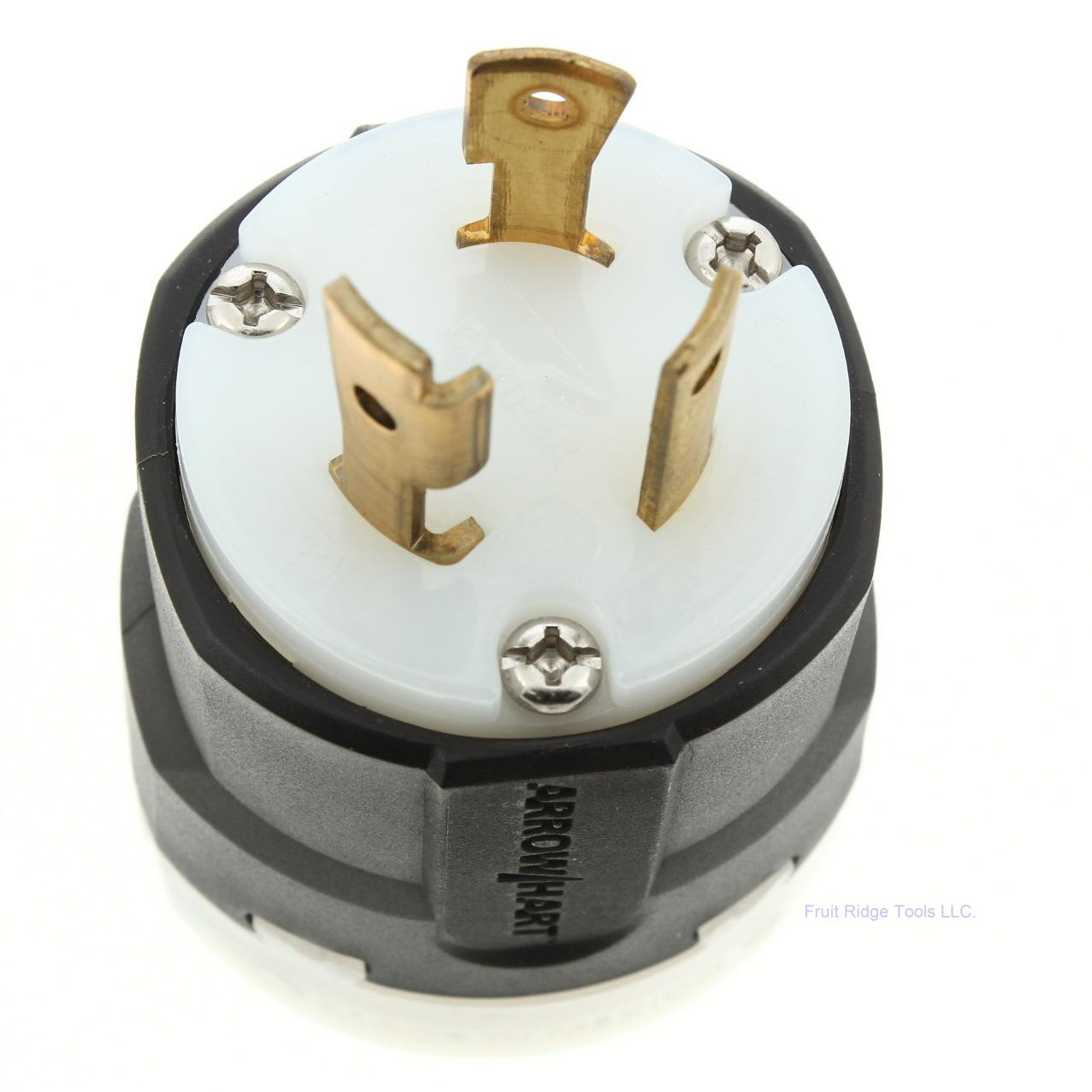

Eaton Arrow Hart Twist Turn Locking Plug Hart-Lock NEMA L5-30P 30A 125V AHL530P

Your Price: $9.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Eaton AHL530P locking plug. Industrial Specification Grade, NEMA L5-30P, 2-pole, 3-wire, grounding, rated 30A 125V. Cord capacity: 0.38-1.00". Each is individually packaged; packaging may differ from photo. Features include:

High-strength nylon construction stands up to severe job site abuse
All-brass terminal screws and clamps for low resistance conductor terminations
Serrated terminal plates and contoured terminal clamps "bite" on the conductors for positive termination
Dead-front construction
Heavy-duty safety grip external cord grip with fast-driving screws provides positive cord gripping and limits strain on conductors
Dust and moisture cord seal limits entry of contaminants into terminal compartment
Inserts included for three separate cord grip ranges
Back wire terminal clamps for easy secure wiring
Grooved housing for easy gripping and twisting
Clear terminal chambers allow visual inspection of terminals
Chamfered wire well for easy insertion of wire
Large, deep-slotted captive brass terminal screws

MPN:

AHL530P

Cross Reference:

Not Available

Color:

Black & White

Amperage:

30A

Condition:

New

UPC:

032664738432

Weight:

0.35 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
