- Leviton Isolated Ground L23-30 Locking Receptacle Twist Lock Outlet NEMA L23-30R 30A 347/600V 3�Y 2830-IG
Leviton Isolated Ground L23-30 Locking Receptacle Twist Lock Outlet NEMA L23-30R 30A 347/600V 3�Y 2830-IG
Your Price: $16.50
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

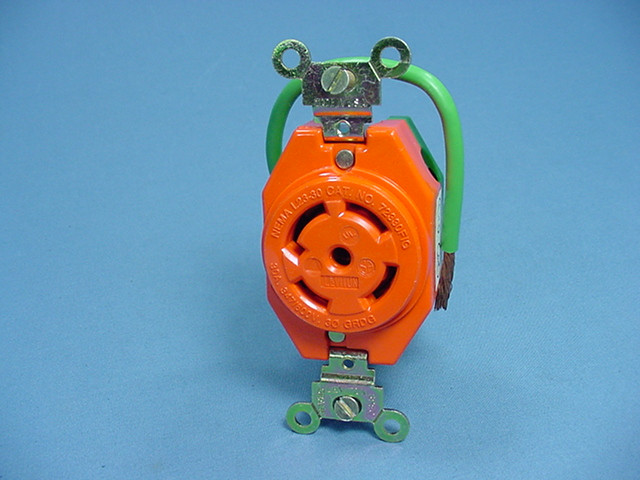

Leviton 2830-IG orange isolated ground locking receptacle. Industrial Specification Grade, NEMA L23-30R, 4-pole, 5-wire, Isolated Ground, rated 30A 347/600V, 3-Phase Y. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Each is individually packaged. Features include:
- Uncompromising industrial-grade quality for superior performance and long service life
- Terminals clearly identified to speed and simplify wiring
- Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
- One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
- Contacts deeply seated in thick walled face
- Extra-thick .050" mounting strap
- Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
- Molded-in terminal identification letters
- Accepts #8-#14 AWG solid or stranded conductors
- Mechanically-secured all-brass ground path
MPN:
2830
Cross Reference:
Not Available
Color:
Orange
Amperage:
30A
Condition:
New
UPC:
078477809778
Weight:
0.30 LBS
