- Leviton L23-20 Twist Locking Receptacle Outlet Turn Lock NEMA L23-20R 20A 347/600V 3ØY 2530-065

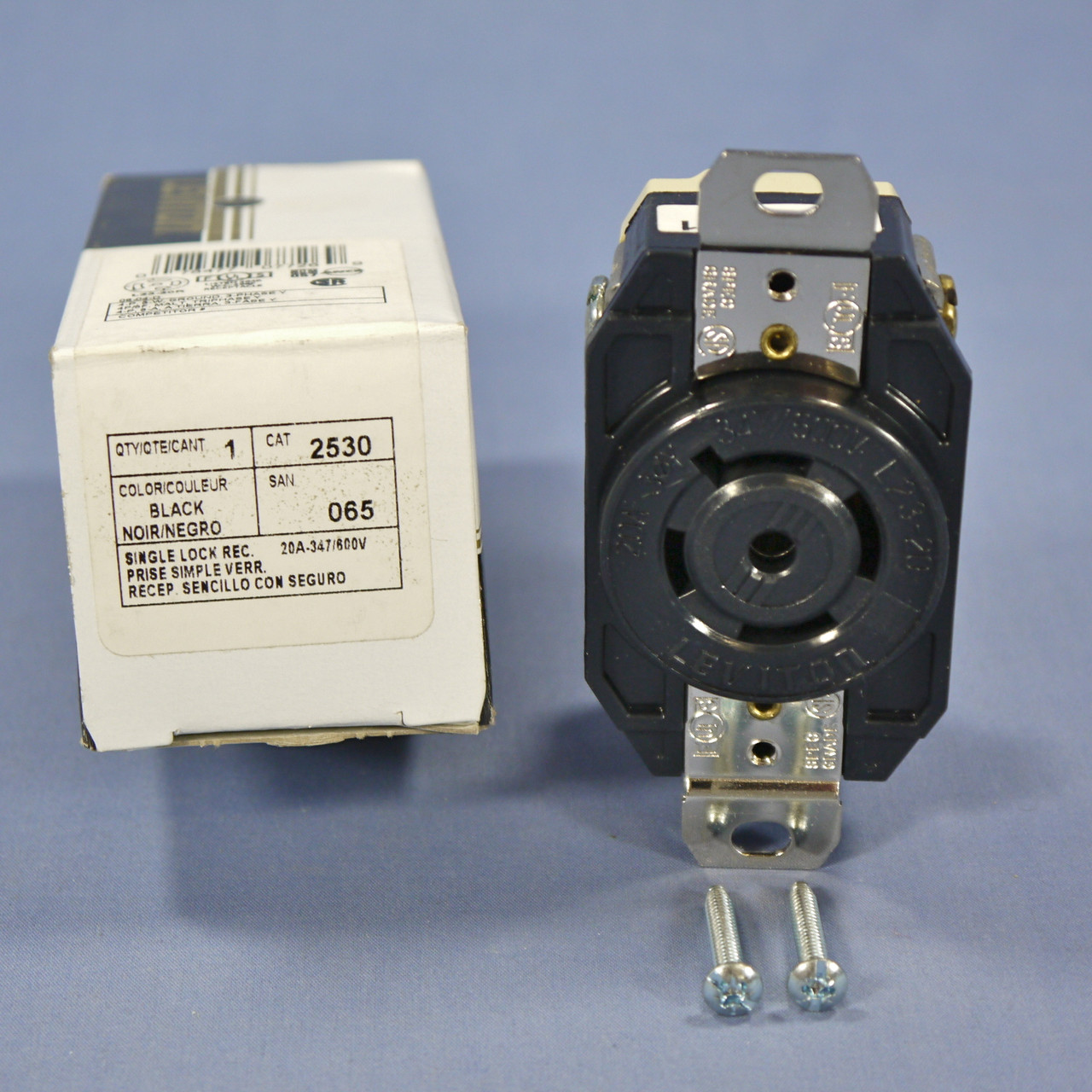

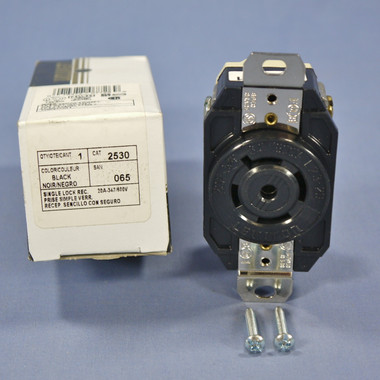

Leviton L23-20 Twist Locking Receptacle Outlet Turn Lock NEMA L23-20R 20A 347/600V 3ØY 2530-065
Your Price: $16.19
QTY Available to Ship:
30
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description
Leviton 2530 black locking receptacle. Industrial Specification Grade, NEMA L23-20R, 4-pole, 5-wire, grounding, 20A 347/600V, 3-Phase Y. Each is individually packaged. Features include:
- Uncompromising industrial-grade quality for superior performance and long service life
- Terminals clearly identified to speed and simplify wiring
- Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
- One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
- Contacts deeply seated in thick walled face
- Extra-thick .050" mounting strap
- Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
- Molded-in terminal identification letters
- Accepts #8-#14 AWG solid or stranded conductors
- Mechanically-secured all-brass ground path
MPN:
2530-065
Cross Reference:
Not Available
Color:
Black
Amperage:
30A
Condition:
New
UPC:
078477077269
Weight:
0.35 LBS
