Arrow Hart L18-30 Locking Flanged Outlet Receptacle Twist Turn Lock Plug Base NEMA L18-30R 30A 120/208V 3�Y 6576

Your Price: $19.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

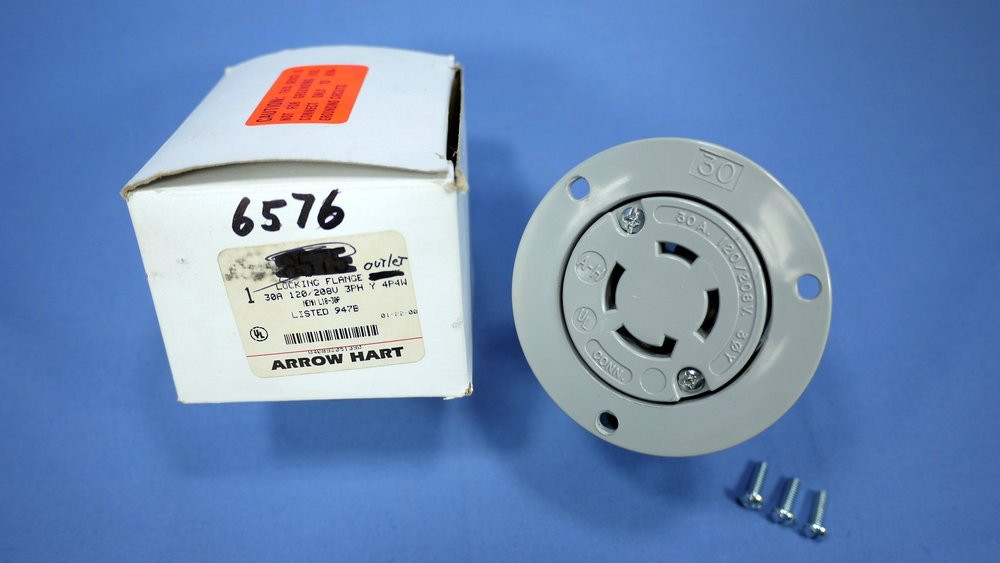

Arrow Hart 6576 gray locking flanged outlet. Industrial Specification Grade, NEMA L18-30R, 4-pole, 4-wire, non-grounding, rated 30A 120/208V 3-Phase Y. Terminals accommodate #18-#10 AWG. Each is individually packaged; packaging may differ from photo. Features include:

One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
Cleat on contacts cuts oxidation when plug blade enters contact surface
Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
Transparent wiring chambers provide a means of visual inspection of conductors and terminals
Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
Color-coded terminal screws
Molded-in strip gage provides correct measurement for proper strip length of conductor
Captive terminal screws eliminate nuisance dropping and searching for missing screws
Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification

MPN:

6576

Cross Reference:

Not Available

Color:

Gray

Amperage:

30A

Condition:

New

UPC:

DOES NOT APPLY

Weight:

0.45 LBS
