- Eaton Arrow Hart Twist Turn Locking Plug Connector Nema L20-20R 20A 347/600V 3 Phase Y AHCL2020C
Eaton Arrow Hart Twist Turn Locking Plug Connector Nema L20-20R 20A 347/600V 3 Phase Y AHCL2020C
Your Price: $19.99
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description

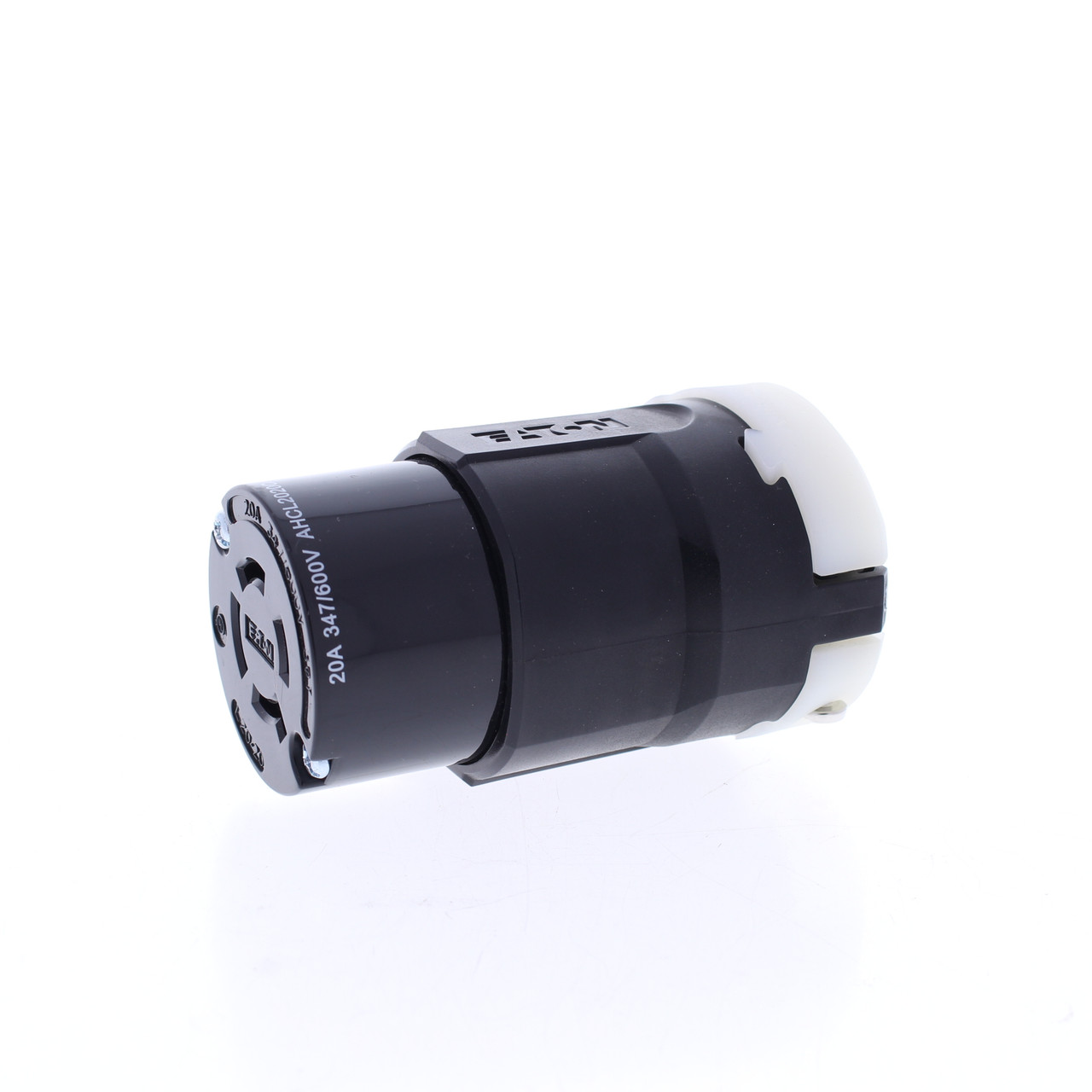

Eaton Arrow Hart AHCL2020C Hart-Lock color-coded black locking connector. Industrial Specification Grade, NEMA L20-20R, 4-pole, 4-wire, non-grounding, rated 20A 347/600V 3ØY . Cord capacity: 0.38"-1.16". Each is individually packaged; packaging may differ from photo. Features include:
- High-strength nylon construction stands up to severe job site abuse
- All-brass terminal screws and clamps for low resistance conductor terminations
- Serrated terminal plates and contoured terminal clamps "bite" on the conductors for positive termination
- Heavy-duty safety grip external cord grip with fast-driving screws provides positive cord gripping and limits strain on conductors
- Dust and moisture cord seal limits entry of contaminants into terminal compartment
- Inserts included for three separate cord grip ranges
- Back wire terminal clamps for easy secure wiring
- Grooved housing for easy gripping and twisting
- Clear terminal chambers allow visual inspection of terminals
- Chamfered wire well for easy insertion of wire
- Large, deep-slotted captive brass terminal screws
MPN:
AHCL2020C
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A
Condition:
New
UPC:
032664759741
Weight:
0.55 LBS
